Product DetailSpecification/Dimensions
-
Wrench Flats W(mm)
- Black Oxide
-
type
- ASPL
- BSPL
- SASPL
- SBSPL
-
Full Length L(mm)
-
Post Dia. D(Ø)
- 3
- 4
- 5
- 6
- 8
- 10
- 12
-
Post Shape
- L-shaped Hole
- L-shaped Grooved
-
Body Material
- S45C
- SUS304
- S45C
-
Mounting Screw Size
- M3
- M4
- M5
- M6
- M8
- M10
- M12
-
Surface Treatment
- Black Oxide Coating
- Not Provided
-
Dimension K(mm)
- 20
- 30
- 40
- 50
- 60
-
Thread Length ℓ(mm)
- 10
- 16
- 20
- 25
- 30
-
Hooking Hole Dia. d(mm)
-
Slot Width A(mm)
-
YC (Washer Thickness Change)(mm)
-
EC (Change Screw Length)(mm)
-
CAD
- 2D
- 3D
Days to Ship
-
- All
- Same day
- 3 Day(s) or Less
- 5 Day(s) or Less
Specify Alterations

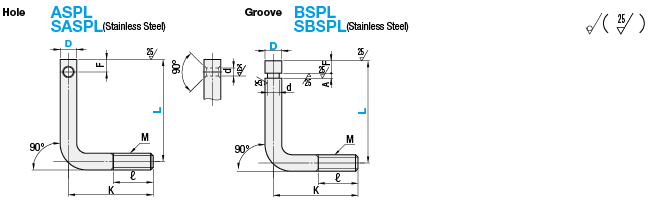

Posts for Tension Springs, L-Shaped Type (SASPL6-30)
POST
Click this image to zoom it.
Move the mouse over or click the image to zoom
- Volume Discount
- All
- Sale Items
Copy Part Number URL to Clipboard
The part number URL has been copied into your clipboard.
-
- Qty :
-
-
- Days to Ship :
- ---
-
- Total Price :
- ---
Select part number to Order Now/ Add to Cart
Similar Products
Product DetailProduct Description
Spring post L type is available. You can choose from hole type and groove type.
Part Number
- Incomplete part number.
Please use left hand selections to complete a part number.
| Part Number |
|---|
| SASPL6-30 |
| Part Number | Price | Name | Minimum Order Qty. | Volume Discount | Days to Ship | RoHS | Full Length L (mm) | Post Dia. D (Ø) | Post Shape | Body Material | Mounting Screw Size | Surface Treatment | Dimension K (mm) | Thread Length ℓ (mm) | Hooking Hole Dia. d (mm) | Slot Width A (mm) | Wrench Flats W (mm) | YC (Washer Thickness Change) (mm) | EC (Change Screw Length) (mm) | Nut Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
฿ 184.00 | POST | 1 Piece(s) | Available | Same day | 10 | 30 | 6 | L-shaped Hole | SUS304 | M6 | Not Provided | 30 | 16 | 2 | 3.0 | - | 30 | 16 | SUS304 equivalent |
Loading...
Please check the type/dimensions/specifications of the part SASPL6-30 in the Posts for Tension Springs, L-Shaped Type series.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
Products with similar specification
| Part Number |
|---|
| ASPL12-40 |
| ASPL3-10 |
| ASPL3-15 |
| SASPL8-25 |
| SASPL8-30 |
| SBSPL3-10 |
| Part Number | Price | Minimum Order Qty | Volume Discount | Days to Ship | RoHS | Full Length L (mm) | Post Dia. D (Ø) | Post Shape | Body Material | Mounting Screw Size | Surface Treatment | Dimension K (mm) | Thread Length ℓ (mm) | Hooking Hole Dia. d (mm) | Slot Width A (mm) | Wrench Flats W (mm) | YC (Washer Thickness Change) (mm) | EC (Change Screw Length) (mm) | Nut Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
฿ 144.00 | 1 Piece(s) | Available | 5 Day(s) | 10 | 40 | [12] 12 | L-shaped Hole | [S45C] S45C Equivalent | [M12] M12 | Black Oxide Coating | 60 | 30 | 6.0 | 4.0 | Black Oxide | 60 | 30 | SWCH equivalent | |
฿ 128.00 | 1 Piece(s) | Available | 5 Day(s) | 10 | 10 | 3 | L-shaped Hole | [S45C] S45C Equivalent | M3 | Black Oxide Coating | 20 | 10 | 1.5 | 1.0 | Black Oxide | 20 | 10 | SWCH equivalent | |
฿ 128.00 | 1 Piece(s) | Same day | 10 | 15 | 3 | L-shaped Hole | [S45C] S45C Equivalent | M3 | Black Oxide Coating | 20 | 10 | 1.5 | 1.0 | Black Oxide | 20 | 10 | SWCH equivalent | ||
฿ 184.00 | 1 Piece(s) | Available | 5 Day(s) | 10 | 25 | [8] 8 | L-shaped Hole | SUS304 | [M8] M8 | Not Provided | 40 | 20 | 3 | 3.0 | - | 40 | 20 | SUS304 equivalent | |
฿ 184.00 | 1 Piece(s) | Available | 5 Day(s) | 10 | 30 | [8] 8 | L-shaped Hole | SUS304 | [M8] M8 | Not Provided | 40 | 20 | 3 | 3.0 | - | 40 | 20 | SUS304 equivalent | |
฿ 160.00 | 1 Piece(s) | Available | Same day | 10 | 10 | 3 | L-shaped Grooved | SUS304 | M3 | Not Provided | 20 | 10 | 1.8 | 1.0 | - | 20 | 10 | SUS304 equivalent |
