Configure

Part number has not been determine

(256 Part Numbers Available)

Configure Remaining Specifications

Part Number Complete

BUFSP3-0.3-[10-300/1]

Material Hook Opposing Angle Outer Dia. D Initial Tension Standard Spring Constant Wire Dia. S type CAD Days to Ship

Specification/Dimensions

Material
- SWP-A
Clear
Hook Opposing Angle
- 90°
Clear
Outer Dia. D(Ø)
3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

20

22

25

28
Clear
Initial Tension(N)
0.18

0.21

0.31

0.38

0.49

0.53

0.59

0.64

0.71

0.77

0.85

0.92

0.93

0.96

1.01

1.15

1.18

1.21

1.26

1.29

1.45

1.50

1.51

1.65

1.96

2.01

2.06

2.09

2.13

2.17

2.21

2.45

2.55

2.74

2.84

2.88

2.94

3.01

3.03

3.04

3.08

3.24

3.43

3.50

3.82

3.95

3.98

4.02

4.03

4.21

4.26

4.31

4.41

4.51

4.74

5.1

5.35

5.39

5.49

5.60

5.63

6.03

6.17

6.39

6.47

6.59

6.66

6.74

7.14

7.35

7.55

7.64

7.75

7.94

8.33

8.72

8.87

9.06

9.25

9.32

9.37

9.80

10.00

10.3

10.6

10.70

10.76

10.90

11.12

11.66

11.8

12.21

12.6

12.70

12.85

13.70

14

14.84

15.13

15.20

15.70

16.5

17.60

17.64

17.80

18.7

19.60

21.28

22.00

22.50

23.60

24.6

26.18

27.4

31.50

33.04

33.30

34.3

38.40

39.20

46.6

48.00

54.90
Clear
Standard Spring Constant(N/mm)
0.11

0.13

0.2

0.3

0.35

0.45

0.5

0.55

0.6

0.65

0.75

0.8

0.85

0.9

0.95

1

1.05

1.2

1.25

1.35

1.45

1.55

1.7

1.75

1.9

1.95

2.05

2.1

2.15

2.25

2.35

2.4

2.5

2.55

2.6

2.65

2.7

2.8

2.9

3.05

3.15

3.25

3.5

3.55

3.6

3.65

3.8

4

4.05

4.4

4.5

4.55

4.65

4.85

4.9

4.95

5.25

5.4

5.55

5.6

5.9

6.2

6.6

6.65

7

7.1

7.35

7.45

7.5

7.6

7.95

8.3

8.45

8.5

8.6

8.65

9.3

9.4

9.6

9.9

10.5

10.85

11.85

11.9

13.45

14.8

15.05

16.75

17

17.4

19.65

20.25

20.5

22.9

23.2

26.95

29.85

30.45

33.1

33.75

37.45
Clear
Wire Dia.(Ø)
0.3

0.4

0.5

0.6

0.7

0.8

0.9

1

1.2

1.4

1.6

1.8

2

2.3

2.6

2.9

3.2

3.5
Clear
S(mm)
[10-550/1mm Unit(s)]
Clear
type
- BUFSP
- BWFSP
- UFSP
- WFSP
Clear
CAD
- 2D
- 3D
Clear

Days to Ship

All

5 Day(s) or Less
Clear

Specify Alterations

Tension Springs/Configurable Length

Compare This Product

Brand :

MISUMI

Part Number :

BUFSP3-0.3-[10-300/1]

BUFSP3-0.4-[10-300/1]

BUFSP4-0.4-[10-300/1]

BUFSP4-0.5-[10-300/1]

BUFSP5-0.5-[10-500/1]

BUFSP5-0.6-[10-500/1]

BUFSP6-0.6-[10-500/1]

BUFSP6-0.8-[10-500/1]

BUFSP7-0.7-[10-550/1]

BUFSP7-0.9-[10-550/1]

BUFSP8-0.8-[10-500/1]

BUFSP8-1.0-[10-500/1]

BUFSP9-1.0-[10-550/1]

BUFSP9-1.2-[10-550/1]

BUFSP10-1.0-[10-550/1]

BUFSP10-1.2-[10-550/1]

BUFSP10-1.4-[10-550/1]

BUFSP11-1.0-[10-550/1]

BUFSP11-1.2-[10-550/1]

BUFSP11-1.4-[10-550/1]

BUFSP3-0.3-[10-300/1]

Price :

---
Qty :
Days to Ship :

---
Total Price :

---

Select part number to Order Now/ Add to Cart

CAD Download

(i)Caution

Please check the content on our website as the PDF does not contain the most up-to-date information.

Product Description

Outer diameter size (Φ7, Φ11, Φ13, Φ15, Φ17) standard added!
A tension spring whose free length can be specified in units of 1 mm.
The outer diameter and length can be freely specified according to the intended use.
Piano wire is also based on the outer diameter.

Type	Material
WFSP	SWP-A
UFSP	SUS304-WPB

Type	Material
BWFSP	SWP-A
BUFSP	SUS304-WPB

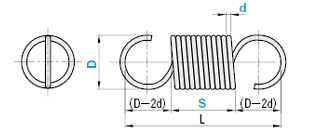

Specifications

Part Number	-	d	-	S
WFSP3 UFSP20	- -	0.3 2.6	- -	10 498

[ ! ]Maximum deflection factor is a numerical value for static loads.
When applying a dynamic load, use the maximum deflection factor × 0.65.
[ ! ]For the maximum deflection, the Web specifications show a percentage, and the catalog PDF shows the value when the S dimension is 50.
Both values give the same result when used.
[ ! ]For the standard spring constant, the Web specifications show a value where the S dimension is 10, and the catalog PDF shows the value when the S dimension is 50.

Part Number		Wire Dia. d mm	S 1mm Increment	Maximum deflection factor (S) ％		Standard Spring Constant (When S = 10) N/mm		Initial Tension N


Type	D			WFSP	UFSP	WFSP	UFSP	WFSP	UFSP
Type	D			BWFSP	BUFSP	BWFSP	BUFSP	BWFSP	BUFSP
WFSP UFSP BWFSP BUFSP	3	0.3	10〜300	176%	174%	0.13	0.11	0.18	0.21
	3	0.4		82%	84%	0.60	0.50	0.53	0.64
	4	0.4		172%	174%	0.20	0.20	0.31	0.38
	4	0.5		96%	92%	0.75	0.65	0.77	0.92
	5	0.5	10〜500	168%	164%	0.35	0.30	0.49	0.59
	5	0.6		100%	102%	0.90	0.80	1.01	1.21
	6	0.6		158%	164%	0.50	0.45	0.71	0.85
	6	0.8		72%	72%	2.35	2.05	2.13	2.55
	7	0.7		140%	132%	0.65	0.60	0.96	1.15
	7	0.9		70%	64%	2.60	2.25	2.94	3.5
	8	0.8		148%	152%	0.90	0.80	1.26	1.51
	8	1		82%	84%	2.90	2.55	3.04	4.26
	9	1	10〜550	112%	114%	1.95	1.70	2.45	3.43
	9	1.2		66%	66%	5.25	4.65	4.41	6.17
	10	1		148%	140%	1.35	1.20	1.96	2.74
		1.2		88%	86%	3.65	3.25	4.31	6.03
		1.4		58%	56%	8.50	7.50	7.64	10.7
	11	1		160%	152%	1.00	0.85	1.45	2.01
		1.2		92%	90%	2.65	2.35	3.24	4.51
		1.4		62%	60%	6.20	5.40	6.39	8.87
	12	1		232%	226%	0.75	0.65	1.18	1.65
		1.2		142%	140%	1.95	1.75	2.84	3.98
		1.4		92%	92%	4.55	4.00	5.39	7.55
		1.6		62%	60%	9.40	8.30	8.72	12.21
	13	1		240%	234%	0.55	0.50	0.93	1.29
		1.2		144%	142%	1.55	1.35	2.17	3.01
		1.4		94%	94%	3.50	3.05	3.95	5.49
		1.6		64%	62%	7.10	6.20	7.75	10.76
	14	1.2		208%	192%	1.20	1.05	2.06	2.88
		1.4		138%	130%	2.70	2.40	3.82	5.35
		1.6		94%	90%	5.55	4.90	6.66	9.32
		1.8		68%	66%	10.50	9.30	10.6	14.84
	15	1.2		212%	196%	0.95	0.85	1.5	2.09
		1.4		140%	132%	2.15	1.90	3.03	4.21
		1.6		96%	92%	4.40	3.80	4.74	6.59
		1.8		70%	68%	8.45	7.35	9.25	12.85
	16	1.4		192%	182%	1.75	1.55	3.04	4.26
		1.6		132%	130%	3.55	3.15	5.1	7.14
		1.8		96%	94%	6.65	5.90	8.33	11.66
		2		68%	70%	11.85	10.50	12.6	17.64
	17	1.4		194%	184%	1.45	1.25	2.21	3.08
		1.6		134%	132%	2.90	2.50	4.03	5.6
		1.8		98%	96%	5.55	4.85	6.74	9.37
		2		70%	72%	9.90	8.65	10.9	15.13
	18	1.6		176%	174%	2.40	2.10	4.02	5.63
		1.8		128%	128%	4.50	4.00	6.47	9.06
		2		94%	96%	7.95	7.00	10	14
		2.3		62%	60%	17.00	15.05	18.7	26.18
	20	1.8		168%	156%	3.15	2.80	5.1	7.14
		2		122%	120%	5.55	4.95	7.94	11.12
		2.3		82%	80%	11.85	10.50	15.2	21.28
		2.6		58%	58%	23.20	20.50	23.6	33.04
	22	2		150%	148%	4.05	3.60	7.35	10.3
		2.3		106%	104%	8.60	7.60	11.8	16.5
		2.6		74%	74%	16.75	14.80	19.6	27.4
		2.9		54%	54%	30.45	26.95	33.3	46.6
	25	2.3		144%	144%	5.60	4.95	9.8	13.7
		2.6		100%	104%	10.85	9.60	15.7	22
		2.9		76%	72%	19.65	17.40	22.5	31.5
		3.2		56%	54%	33.75	29.85	34.3	48
	28	2.6		138%	128%	7.45	6.60	12.7	17.8
		2.9		102%	98%	13.45	11.90	17.6	24.6
		3.2		78%	74%	22.90	20.25	27.4	38.4
		3.5		62%	58%	37.45	33.10	39.2	54.9

■Accuracy Standards
• D Dimension Tolerance

D/d^*1	Tolerance
Less than 8	±1.5% of D dimension (Min. ±0.2mm)
8~20	±2% of D dimension (Min. ±0.3mm)

*1. D/d = Spring Index
• S Dimension Tolerance
When d≤0.5, ±2 x Wire Dia.
(Ex: When d=0.3, ±0.6)
When d≥0.6, ±Wire Dia.
(Ex: When d=1.0, ±1.0)

• Calculate the maximum deflection and spring constant using the following formula.
• Maximum deflection Maximum deflection (mm) = S × maximum deflection factor (%)	• Spring constant(reference value) Spring constant (N/mm) ＝ reference spring constant × 10/S

Example) Calculation of maximum deflection and spring constant of UFSP20-2.6-498

Maximum deflection(mm) = 498×58% = 288.84	Spring constant(N/mm) = 20.50 ×	10	= 0.41
		498

[ ! ]For the maximum deflection, the Web specifications show a percentage, and the catalog PDF shows the value when the S dimension is 50.
Both values give the same result when used.
[ ! ]For the standard spring constant, the Web specifications show a value where the S dimension is 10, and the catalog PDF shows the value when the S dimension is 50.

Part Number

Incomplete part number.
Please use left hand selections to complete a part number.

: 30; 60; 90

Part Number
BUFSP3-0.3-[10-300/1]
BUFSP3-0.4-[10-300/1]
BUFSP4-0.4-[10-300/1]
BUFSP4-0.5-[10-300/1]
BUFSP5-0.5-[10-500/1]
BUFSP5-0.6-[10-500/1]
BUFSP6-0.6-[10-500/1]
BUFSP6-0.8-[10-500/1]
BUFSP7-0.7-[10-550/1]
BUFSP7-0.9-[10-550/1]
BUFSP8-0.8-[10-500/1]
BUFSP8-1.0-[10-500/1]
BUFSP9-1.0-[10-550/1]
BUFSP9-1.2-[10-550/1]
BUFSP10-1.0-[10-550/1]
BUFSP10-1.2-[10-550/1]
BUFSP10-1.4-[10-550/1]
BUFSP11-1.0-[10-550/1]
BUFSP11-1.2-[10-550/1]
BUFSP11-1.4-[10-550/1]
BUFSP12-1.0-[10-550/1]
BUFSP12-1.2-[10-550/1]
BUFSP12-1.4-[10-550/1]
BUFSP12-1.6-[10-550/1]
BUFSP13-1.0-[10-550/1]
BUFSP13-1.2-[10-550/1]
BUFSP13-1.4-[10-550/1]
BUFSP13-1.6-[10-550/1]
BUFSP14-1.2-[10-550/1]
BUFSP14-1.4-[10-550/1]
BUFSP14-1.6-[10-550/1]
BUFSP14-1.8-[10-550/1]
BUFSP15-1.2-[10-550/1]
BUFSP15-1.4-[10-550/1]
BUFSP15-1.6-[10-550/1]
BUFSP15-1.8-[10-550/1]
BUFSP16-1.4-[10-550/1]
BUFSP16-1.6-[10-550/1]
BUFSP16-1.8-[10-550/1]
BUFSP16-2.0-[10-550/1]
BUFSP17-1.4-[10-550/1]
BUFSP17-1.6-[10-550/1]
BUFSP17-1.8-[10-550/1]
BUFSP17-2.0-[10-550/1]
BUFSP18-1.6-[10-550/1]
BUFSP18-1.8-[10-550/1]
BUFSP18-2.0-[10-550/1]
BUFSP18-2.3-[10-550/1]
BUFSP20-1.8-[10-550/1]
BUFSP20-2.0-[10-550/1]
BUFSP20-2.3-[10-550/1]
BUFSP20-2.6-[10-550/1]
BUFSP22-2.0-[10-550/1]
BUFSP22-2.3-[10-550/1]
BUFSP22-2.6-[10-550/1]
BUFSP22-2.9-[10-550/1]
BUFSP25-2.3-[10-550/1]
BUFSP25-2.6-[10-550/1]
BUFSP25-2.9-[10-550/1]
BUFSP25-3.2-[10-550/1]
BUFSP28-2.6-[10-550/1]
BUFSP28-2.9-[10-550/1]
BUFSP28-3.2-[10-550/1]
BUFSP28-3.5-[10-550/1]
BWFSP3-0.3-[10-300/1]
BWFSP3-0.4-[10-300/1]
BWFSP4-0.4-[10-300/1]
BWFSP4-0.5-[10-300/1]
BWFSP5-0.5-[10-500/1]
BWFSP5-0.6-[10-500/1]
BWFSP6-0.6-[10-500/1]
BWFSP6-0.8-[10-500/1]
BWFSP7-0.7-[10-550/1]
BWFSP7-0.9-[10-550/1]
BWFSP8-0.8-[10-500/1]
BWFSP8-1.0-[10-500/1]
BWFSP9-1.0-[10-550/1]
BWFSP9-1.2-[10-550/1]
BWFSP10-1.0-[10-550/1]
BWFSP10-1.2-[10-550/1]
BWFSP10-1.4-[10-550/1]
BWFSP11-1.0-[10-550/1]
BWFSP11-1.2-[10-550/1]
BWFSP11-1.4-[10-550/1]
BWFSP12-1.0-[10-550/1]
BWFSP12-1.2-[10-550/1]
BWFSP12-1.4-[10-550/1]
BWFSP12-1.6-[10-550/1]
BWFSP13-1.0-[10-550/1]
BWFSP13-1.2-[10-550/1]

Price	Name	Minimum Order Qty.	Days to Ship	RoHS	Material	Hook Opposing Angle	Outer Dia. D (Ø)	Initial Tension (N)	Standard Spring Constant (N/mm)	Wire Dia. (Ø)	S (mm)
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	3	0.21	0.11	0.3	10 ～ 300
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	3	0.64	0.5	0.4	10 ～ 300
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	4	0.38	0.2	0.4	10 ～ 300
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	4	0.92	0.65	0.5	10 ～ 300
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	5	0.59	0.3	0.5	10 ～ 500
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	5	1.21	0.8	0.6	10 ～ 500
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	6	0.85	0.45	0.6	10 ～ 500
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	6	2.55	2.05	0.8	10 ～ 500
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	7	1.15	0.6	0.7	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	7	3.50	2.25	0.9	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	8	1.51	0.8	0.8	10 ～ 500
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	8	4.26	2.55	1	10 ～ 500
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	9	3.43	1.7	1	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	9	6.17	4.65	1.2	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	10	2.74	1.2	1	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	10	6.03	3.25	1.2	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	10	10.70	7.5	1.4	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	11	2.01	0.85	1	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	11	4.51	2.35	1.2	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	11	8.87	5.4	1.4	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	12	1.65	0.65	1	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	12	3.98	1.75	1.2	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	12	7.55	4	1.4	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	12	12.21	8.3	1.6	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	13	1.29	0.5	1	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	13	3.01	1.35	1.2	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	13	5.49	3.05	1.4	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	13	10.76	6.2	1.6	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	14	2.88	1.05	1.2	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	14	5.35	2.4	1.4	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	14	9.32	4.9	1.6	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	14	14.84	9.3	1.8	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	15	2.09	0.85	1.2	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	15	4.21	1.9	1.4	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	15	6.59	3.8	1.6	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	15	12.85	7.35	1.8	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	16	4.26	1.55	1.4	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	16	7.14	3.15	1.6	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	16	11.66	5.9	1.8	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	16	17.64	10.5	2	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	17	3.08	1.25	1.4	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	17	5.60	2.5	1.6	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	17	9.37	4.85	1.8	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	17	15.13	8.65	2	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	18	5.63	2.1	1.6	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	18	9.06	4	1.8	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	18	14	7	2	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	18	26.18	15.05	2.3	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	20	7.14	2.8	1.8	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	20	11.12	4.95	2	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	20	21.28	10.5	2.3	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	20	33.04	20.5	2.6	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	22	10.3	3.6	2	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	22	16.5	7.6	2.3	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	22	27.4	14.8	2.6	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	22	46.6	26.95	2.9	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	25	13.70	4.95	2.3	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	25	22.00	9.6	2.6	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	25	31.50	17.4	2.9	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	25	48.00	29.85	3.2	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	28	17.80	6.6	2.6	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	28	24.6	11.9	2.9	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	28	38.40	20.25	3.2	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	-	90°	28	54.90	33.1	3.5	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	SWP-A	90°	3	0.18	0.13	0.3	10 ～ 300
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	SWP-A	90°	3	0.53	0.6	0.4	10 ～ 300
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	SWP-A	90°	4	0.31	0.2	0.4	10 ～ 300
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	SWP-A	90°	4	0.77	0.75	0.5	10 ～ 300
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	SWP-A	90°	5	0.49	0.35	0.5	10 ～ 500
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	SWP-A	90°	5	1.01	0.9	0.6	10 ～ 500
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	SWP-A	90°	6	0.71	0.5	0.6	10 ～ 500
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	SWP-A	90°	6	2.13	2.35	0.8	10 ～ 500
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	SWP-A	90°	7	0.96	0.65	0.7	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	SWP-A	90°	7	2.94	2.6	0.9	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	SWP-A	90°	8	1.26	0.9	0.8	10 ～ 500
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	SWP-A	90°	8	3.04	2.9	1	10 ～ 500
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	SWP-A	90°	9	2.45	1.95	1	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	SWP-A	90°	9	4.41	5.25	1.2	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	SWP-A	90°	10	1.96	1.35	1	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	SWP-A	90°	10	4.31	3.65	1.2	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	SWP-A	90°	10	7.64	8.5	1.4	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	SWP-A	90°	11	1.45	1	1	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	SWP-A	90°	11	3.24	2.65	1.2	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	SWP-A	90°	11	6.39	6.2	1.4	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	SWP-A	90°	12	1.18	0.75	1	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	SWP-A	90°	12	2.84	1.95	1.2	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	SWP-A	90°	12	5.39	4.55	1.4	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	SWP-A	90°	12	8.72	9.4	1.6	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	SWP-A	90°	13	0.93	0.55	1	10 ～ 550
-	TENSION SPRING	1 Piece(s)	5 Day(s)	10	SWP-A	90°	13	2.17	1.55	1.2	10 ～ 550
