Hex Head Bolts with Magnets

[ ! ]Type: HXUB, HXUBN, HXUBNH, HXUBNK, HXBY, HXSUBN, KHUBN: Tighten the hex part B with a wrench or box wrench.
[ ! ]Type: RHXSUBN, RKHUBN: Tighten the hex part B with a wrench or box wrench, or tighten the hex socket H with a hex wrench.
[ ! ]Type: HXUBNK: Since the magnet is not directly exposed, it is easier to prevent wear and damage.

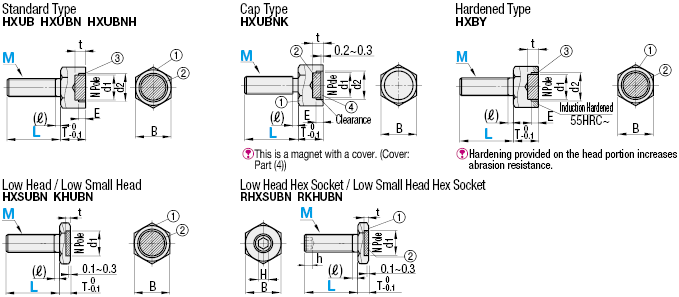

Type

(1)

(2)

(3)

(4)

Heat Resistant Temperature

Hex Part

Magnet

Holder

Cover

Standard

Cap

Hardening

Low Head

Low Head Hexagon Socket

Low Small Head

Low Small Head Hexagon Socket

[ M ]Material

[ S ]Surface Treatment

[ M ]Material

[ S ]Surface Treatment

[ M ]Material

[ M ]Material

HXUB

-

-

-

-

-

-

SUM24L

Electroless Nickel Plating

Samarium-Cobalt Magnet

-

* Brass (C3604 BD)

-

80°C

HXUBN

HXUBNK

-

HXSUBN

RHXSUBN

KHUBN

RKHUBN

Neodymium Magnet

Nickel Plating

SUS430

HXUBNH

-

-

-

-

-

-

Heat-resistant Neodymium Magnets

-

150°C

-

-

HXBY

-

-

-

-

S45C

Neodymium Magnet

80°C

* Brass is not included in Cap, Low Head and Low Small Head Type. Included in Standard and Hardening Type.
