Select part number to Order Now/ Add to Cart
[Features]·A C-type retaining ring, internal. ·The unit of purchase is loose (available in quantities of 1 pc.). ·The retaining ring type is an inner ring retaining ring.
Part Number |
---|
RTWN24 |
Part Number | Price | Name | Minimum Order Qty. | Volume Discount | Days to Ship | RoHS | Nominal | Material | Shaft or Hole Used d1 (Reference) (mm) | Applicable Shaft or Hole d2 (Reference) (mm) | Shaft / Shaft Bore / Groove Nominal (Reference) (mm) |
---|---|---|---|---|---|---|---|---|---|---|---|
฿ 30.03 | PARTS FOR JIG | 1 Piece(s) | Available | Same day | 10 | 24 | Steel | 24 | 25.2 | 24 |
Loading...
Type | Retained with Inner Ring | Shape | Standard Type (C-Ring) | Retaining Ring Type | Retained with Inner Ring |
---|---|---|---|---|---|
Mounting Method Type | Standard | Sales Unit | Low Quantity (Available beginning with 1 pc.) | Product Type | Retaining Ring |

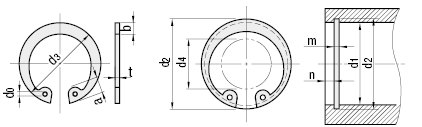

Please check the type/dimensions/specifications of the part RTWN24 in the Retaining Rings/Internal/C-Type series.
Part Number |
---|
RTWN13 |
RTWN14 |
RTWN15 |
RTWN25 |
RTWN26 |
RTWN28 |
Part Number | Price | Minimum Order Qty | Volume Discount | Days to Ship | RoHS | Nominal | Material | Shaft or Hole Used d1 (Reference) (mm) | Applicable Shaft or Hole d2 (Reference) (mm) | Shaft / Shaft Bore / Groove Nominal (Reference) (mm) |
---|---|---|---|---|---|---|---|---|---|---|
฿ 23.66 | 1 Piece(s) | Same day | 10 | 13 | Steel | 13 | 13.6 | 13 | ||
฿ 23.66 | 1 Piece(s) | Available | Same day | 10 | 14 | Steel | 14 | 14.6 | 14 | |
฿ 23.66 | 1 Piece(s) | Available | Same day | 10 | 15 | Steel | 15 | 15.7 | 15 | |
฿ 30.03 | 1 Piece(s) | Available | Same day | 10 | 25 | Steel | 25 | 26.2 | 25 | |
฿ 30.03 | 1 Piece(s) | Available | Same day | 10 | 26 | Steel | 26 | 27.2 | 26 | |
฿ 30.03 | 1 Piece(s) | Available | Same day | 10 | 28 | Steel | 28 | 29.4 | 28 |
