[Motorized] XY-Axis, Linear Ball Slide
Brand :
MISUMI
Caution
- Please confirm the suitable power supply for each motor option.
5-Phase Stepping Motor with Brake (MA) works with single-phase AC100-120V.
α-Step Motor (PA) works with DC24V.
AC Servo Motor (U) works with single-phase or three-phase AC200-230V. - Please check the content on our website as the PDF does not contain the most up-to-date information.
- Delivery times for some of our products may be delayed as national government authorities have imposed limit of capacity at our production sites.
Product Description
An integrated linear ball is used for the guide system, achieving high precision and high rigidity.
![[Motorized] XY-Axis, Linear Ball Slide:Related Image](http://th.misumi-ec.com/en/linked/item/10300203460/img/drw_01_001.gif)

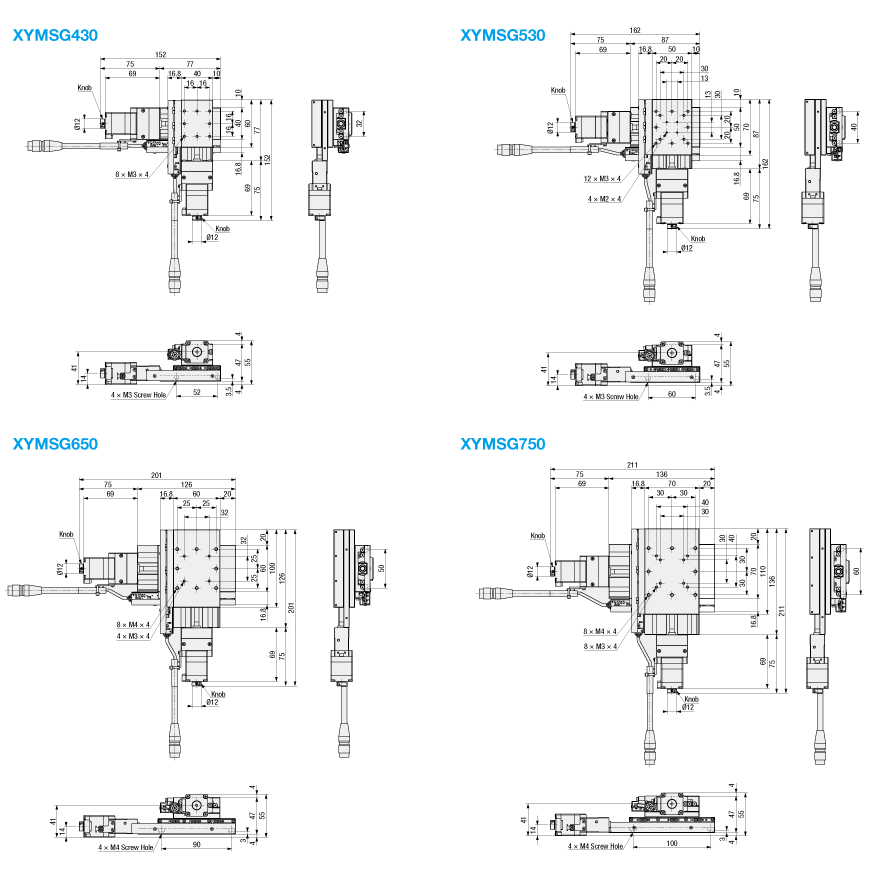

![[Motorized] XY-Axis, Linear Ball Slide:Related Image](http://th.misumi-ec.com/en/linked/item/10300203460/img/drw_02.gif)
[ M ] Material: SUS440C Equivalent
[ S ] Surface Treatment: Electroless Nickel Plating
[ A ] Accessory: XYMSG413/513/430/530: SCB3-8, 4 pcs.
XYMSG615/715/650/750: SCB4-8, 4 pcs.
[ S ] Surface Treatment: Electroless Nickel Plating
[ A ] Accessory: XYMSG413/513/430/530: SCB3-8, 4 pcs.
XYMSG615/715/650/750: SCB4-8, 4 pcs.
More Information
■Motor/Cable Application Table
| Motor | Cable |
| C,F,G | N (Not Provided) |
| MA | M |
| PA | P |
| UA | U |
For the cable for C, F or G, see MSCB_on P.1-2014-3
■Max. speed
| Motor | (mm/sec) | Motor | (mm/sec) |
| C | 10 | MA | 15 |
| D | 25 | PA | 35 |
| E | 20 | UA | 50 |
Note that the speed and positioning time will vary depending on the usage conditions.
The values shown here are MISUMI’s reference values. Operation at these values is not guaranteed.
| Feed Screw | Ball Screw Ø6, Lead 1 |
| Guide | Linear Ball Guide |
| Resolution*1 | 2μm/Pulse(Full) 1μm/Pulse(Half) |
| Positioning Repeatability | Within ±0.5μ m |
| Lost Motion | 1μm or less |
| Backlash | 0.5μm or less |
| Parallelism | 15μm or less |

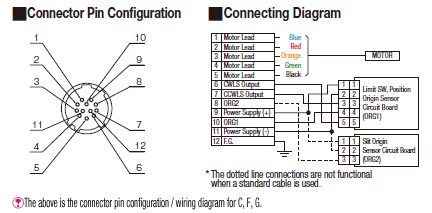

![[Motorized] XY-Axis, Linear Ball Slide:Related Image](http://th.misumi-ec.com/en/linked/item/10300203460/img/oth_04.gif)
