[Motorized] X-Axis, Linear Ball Slide
Brand :
MISUMI
Caution
- Please confirm the suitable power supply for each motor option.
5-Phase Stepping Motor with Brake (MA) works with single-phase AC100-120V.
α-Step Motor (PA) works with DC24V.
AC Servo Motor (U) works with single-phase or three-phase AC200-230V. - Please check the content on our website as the PDF does not contain the most up-to-date information.
- Delivery times for some of our products may be delayed as national government authorities have imposed limit of capacity at our production sites.
Product Description
[Features]This is a high-precision, high stiffness automatic X-axis stage with a thickness of 20 mm.

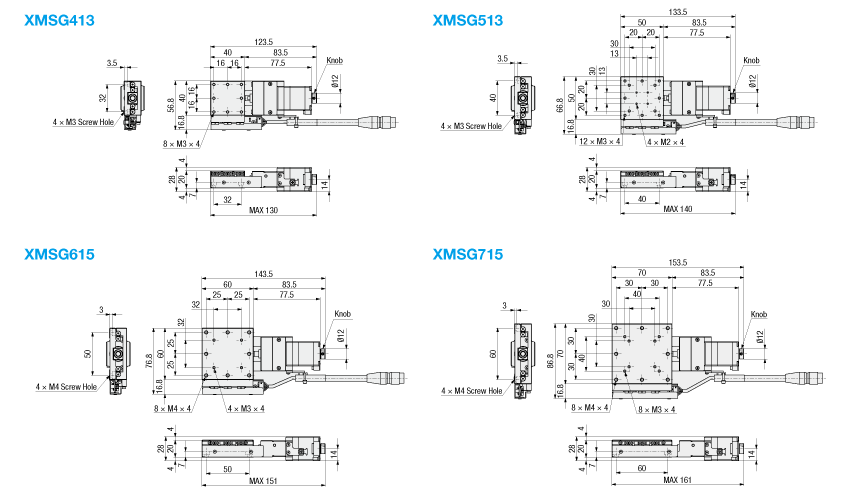

![[Motorized] X-Axis, Linear Ball Slide:Related Image](http://th.misumi-ec.com/en/linked/item/10300203370/img/drw_01_001.gif)

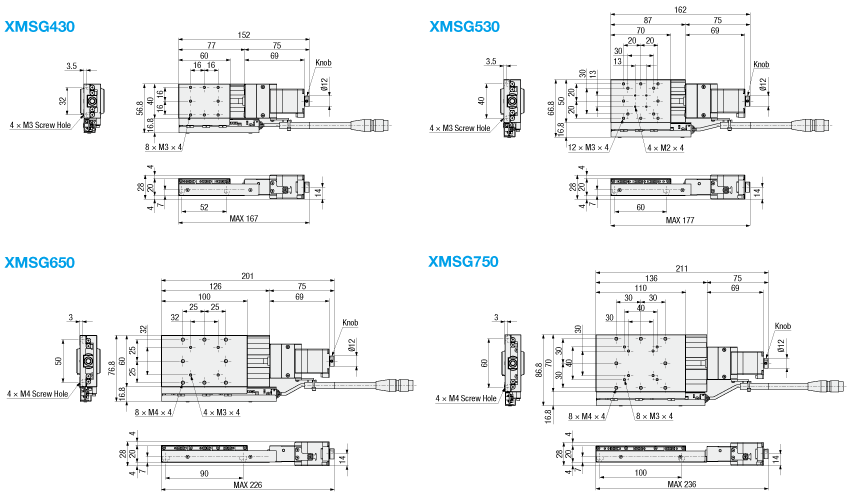

![[Motorized] X-Axis, Linear Ball Slide:Related Image](http://th.misumi-ec.com/en/linked/item/10300203370/img/drw_02_001.gif)
[ M ] Material: SUS440C Equivalent
[ S ] Surface Treatment: Electroless Nickel Plating
[ A ] Accessory: XMSG413/513/430/530: SCB3-8, 4 pcs.
XMSG615/715/650/750: SCB4-8, 4 pcs.
[ S ] Surface Treatment: Electroless Nickel Plating
[ A ] Accessory: XMSG413/513/430/530: SCB3-8, 4 pcs.
XMSG615/715/650/750: SCB4-8, 4 pcs.
More Information
■Motor/Cable Application Table
| Motor | Cable |
| C,F,G | N (Not Provided) |
| MA | M |
| PA | P |
| UA | U |
For the cable for C, F or G, see MSCB_on P.1-1735-95
■Max. speed
| Motor | (mm/sec) | Motor | (mm/sec) |
| C | 10 | MA | 15 |
| F | 25 | PA | 35 |
| G | 20 | UA | 50 |
Note that the speed and positioning time will vary depending on the usage conditions.
The values shown here are MISUMI’s reference values. Operation at these values is not guaranteed.
■Common Specifications
| Feed Screw | Ball Screw Ø6, Lead 1 |
| Guide | Linear Ball Guide |
| Resolution*1 | 2μm/Pulse(Full) 1μm/Pulse(Half) |
| Straightness | 1μm or less(No.413〜715) 2μm or less(No.430〜750) |
| Positioning Repeatability | Within ±0.5μ m |
| Load Capacity*2 | 98N |
| Lost Motion | 1μm or less |
| Backlash | 0.5μm or less |
| Parallelism | 15μm or less |
*1 Stage travel per one pulse.
*2 The load capacity when using Z-Axis (vertical) configuration declines to 49N.

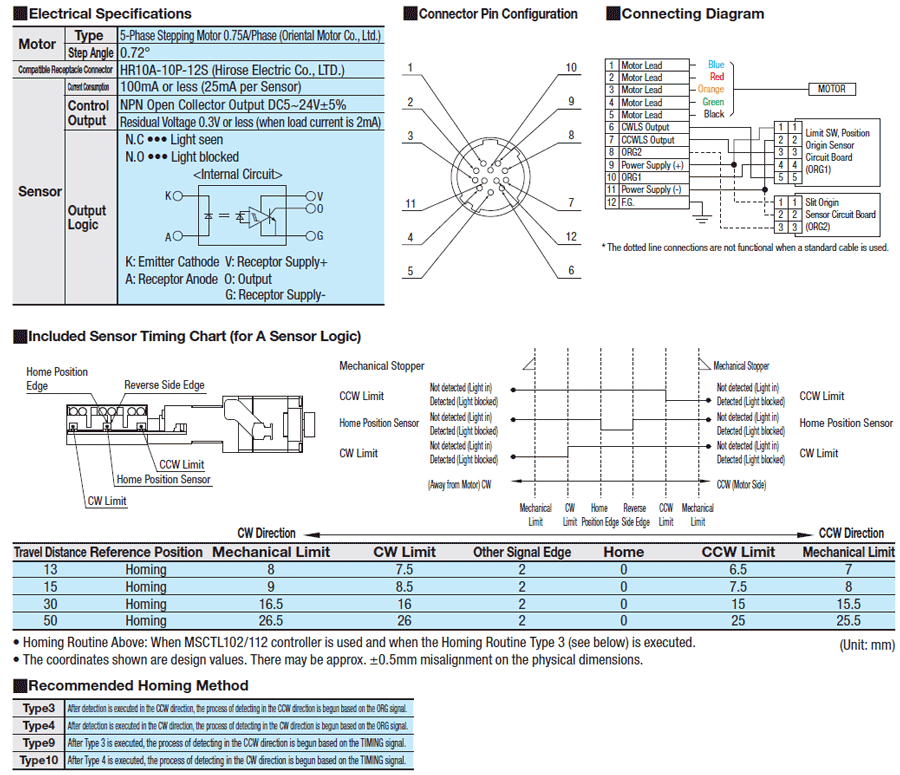

![[Motorized] X-Axis, Linear Ball Slide:Related Image](http://th.misumi-ec.com/en/linked/item/10300203370/img/alt_01_002.gif)
■When Recommended Homing Method for MSCTL102/112(>> Click here) is used
