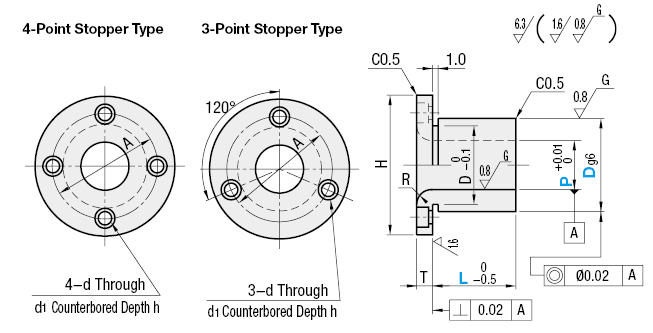

Bushings for Locating Pins - Round Flange
Brand :
MISUMI
Caution
- Please check the content on our website as the PDF does not contain the most up-to-date information.
Product Description
[Applications]Round flange type bushing for positioning pins. [Alteration Support]change in T dimension tolerance, addition of inner diameter R, one side cut, change in inner diameter R.
| [ M ]Material | [ S ]Surface Treatment | [ H ]Hardness | Type | |||
| P Fixed and L Selectable | P, L Configurable | |||||
| 4-Point Stopper | 3-Point Stopper | 4-Point Stopper | 3-Point Stopper | |||
| SKS3 Equivalent | - | * Treated Hardness: 56 ~ 60HRC | JBY | JBT | JBYF | JBTF |
| Black Oxide | - | - | JBYFB | - | ||
| Electroless Nickel Plating | JBYM | - | JBYFM | JBTFM | ||
| SUS304 | - | - | - | - | JBYFS | - |
| SUS440C or 13Cr stainless | - | Treated Hardness: 50 ~ 55HRC | - | - | JBYFC | - |
Price list
■Volume Discount Rate P.87
| Qty. | 1~4 | 5~9 | 10~19 | 20~49 |
| Rate | Unit Price | 5% | 10% | 15% |
