Pivot Pins - Lock Nut with Extra Low Hex Socket Head
Brand :
MISUMI
Caution
Product Description
[Standard expansion]
We have added a U-nut type that can be expected to have a high loosening prevention effect.
Added hard chrome plating with excellent wear resistance.
[Features]
Compact design is possible due to the extremely low head.
A hinge pin that can be tightened with a hex wrench.

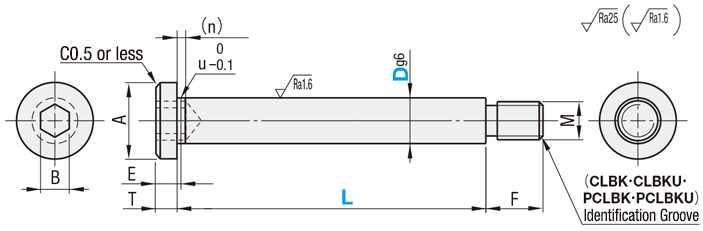

[ ! ] There are identification grooves on the side of CLBK, CLBKU, PCLBK and PCLBKU to be distinguished from Hardened Type.
[ ! ] Relief dimension under the shoulder is for reference.
[!] This type may have centering holes depending on dimensions.
[ ! ] The dimension tolerances for L, T, and A conform to JIS B 0405 Class m.
| Type | [M] Material | [H] Hardness | [S] Surface Treatment | [A]Accessory (1 pc.) | ||
| Standard Nut | U Nut | Standard Nut | U Nut | |||
| CLBK | CLBKU | S45C Equivalent | — | Black Oxide | [ M ]SWRCH | [ M ]SS400 (UNUTK) |
| CLBKH | CLBKHU | 40 to 45HRC | ||||
| PCLBK | PCLBKU | — | Electroless Nickel Plating | [ M ]SUS304 | [ M ]SUS304 (UNUTS) | |
| PCLBKH | PCLBKHU | 40 to 45HRC | ||||
| GCLBK | GCLBKU | Plating Hardness 750 HV or more | Hard Chrome Plating | [ M ]SWRCH | [ M ]SS400 (UNUTK) | |
| SCLBK | SCLBKU | SUS304 Equivalent | — | — | [ M ]SUS304 | [ M ]SUS304 (UNUTS) |
| SCLBKH | SCLBKHU | SUS440C or 13Cr Stainless Steel | 45 to 50HRC | |||
| GSCLBKH | GSCLBKHU | 45 to 50HRC Plating Hardness 750 HV or more | Hard Chrome Plating | |||
