Pivot Pins / Keys for Precision Pivot Pins - Keyway
Brand :
MISUMI
Caution
Product Description
[Specification expansion]
Added hard chrome plating with excellent wear resistance.
[Features]
Hinge pin that can be fixed with a key.

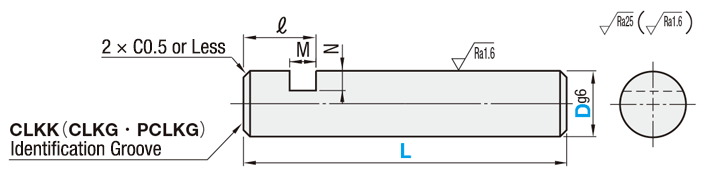

[ ! ] There are identification grooves on the key groove side of CLKK to be distinguished from Hardened Type.
(CLKG and PCLKG may have identification grooves.)
[ ! ] L Dimension Tolerance conforms to JIS B 0405 Class m.
| Type | [M] Material | [H] Hardness | [S] Surface Treatment | |
| L Dimension Selectable | L Dimension Configurable | |||
| CLKK | CLKG | S45C Equivalent | — | Black Oxide |
| CLKKH | CLKGHH | 40 to 45HRC | ||
| — | PCLKG | — | Electroless Nickel Plating | |
| — | PCLKGH | 40 to 45HRC | ||
| — | GCLKG | Plating Hardness 750 HV or more | Hard Chrome Plating | |
| SCLKK | SCLKG | SUS304 Equivalent | — | — |
| — | SCLKGH | SUS440C or 13Cr Stainless Steel | 45 to 50HRC | |
| — | GSCLKGH | 45 to 50HRC Plating Hardness 750 HV or more | Hard Chrome Plating | |
