Pivot Pins - Tapped, Hex Socket Head with Shoulder
Brand :
MISUMI
Caution
Product Description
[Features]
Hinge pin that can be tightened with a hex wrench.

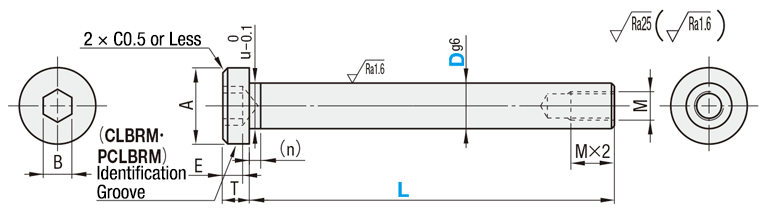

[ ! ] There are identification grooves on the side of CLBRM and PCLBRM to be distinguished from Hardened Type.
[ ! ] Relief dimension under the shoulder is for reference.
[ ! ] The dimension tolerances for L, T, and A conform to JIS B 0405 Class m.
| Type | [M] Material | [H] Hardness | [S] Surface Treatment |
| CLBRM | S45C Equivalent | — | Black Oxide |
| CLBRHM | 40 to 45HRC | ||
| PCLBRM | — | Electroless Nickel Plating | |
| PCLBRHM | 40 to 45HRC | ||
| GCLBRM | Plating Hardness 750 HV or more | Hard Chrome Plating | |
| SCLBRM | SUS304 | — | — |
| SCLBRHM | SUS440C or 13Cr Stainless Steel | 45 to 50HRC | |
| GSCLBRHM | 45 to 50HRC Plating Hardness 750 HV or more | Hard Chrome Plating |
