Pivot Pins - Both Ends Tapped
Brand :
MISUMI
Caution
Product Description
[Specification expansion]
Added hard chrome plating with excellent wear resistance.
[Features]

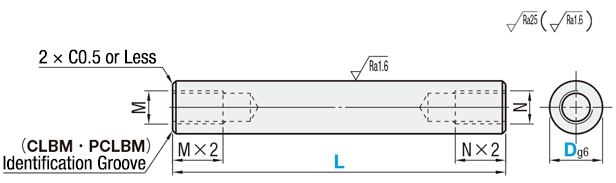

A hinge pin that can be securely fixed at both ends with screws.
[ ! ] There are identification grooves on the side of CLBM and PCLBM to be distinguished from Hardened Type.
[ ! ] L Dimension Tolerance conforms to JIS B 0405 Class m.
| Type | [M] Material | [H] Hardness | [S] Surface Treatment |
| CLBM | S45C Equivalent | — | Black Oxide |
| CLBHM | 40 to 45HRC | ||
| PCLBM | — | Electroless Nickel Plating | |
| PCLBHM | 40 to 45HRC | ||
| GCLBM | Plating Hardness 750 HV or more | Hard Chrome Plating | |
| SCLBM | SUS304 | — | — |
| SCLBHM | SUS440C or 13Cr Stainless Steel | 45 to 50HRC | |
| GSCLBHM | 45 to 50HRC Plating Hardness 750 HV or more | Hard Chrome Plating |
