Configure

Part number has not been determine

(1 Part Numbers Available)

Configure Remaining Specifications

Part Number Complete

BFLB6-5

type Inner Dia. d Outer Dia. D Overall Length L CAD Days to Ship

Specification/Dimensions

type
- BFLB
Clear
Inner Dia. d(Ø)
4

5

6

8

10

12

16
Clear
Outer Dia. D(Ø)
7

8

9

11

13

15

19
Clear
Overall Length L(mm)
5

6

8

10

12

15

20

25
Clear
CAD
- 2D
- 3D
Clear

Days to Ship

All

Same day

3 Day(s) or Less
Clear

Specify Alterations

Oil Free Bushings - High Precision (BFLB6-5)

Name: Oil Free Bushings - High Precision
Brand: MISUMI
Price: 405.41 THB
Availability: InStock

OIL FREE BUSH

Click this image to zoom it.

Move the mouse over or click the image to zoom

Compare This Product

Volume Discount

Brand :

MISUMI

Qty :
Days to Ship :

---
Total Price :

---

Select part number to Order Now/ Add to Cart

CAD Download

Product Description

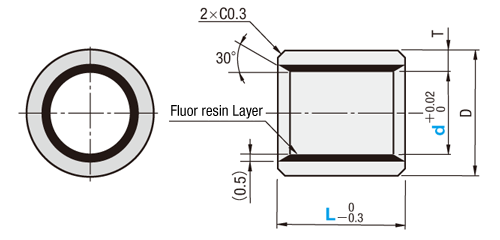

- Oil Free Bushings - High Precision
- The series including of BFLB.
- Bushing Material: Base Material A2017 .
- Sliding Material: Fluororesin (* Base and sliding materials are bonded.)
- Inner Diameter: 4, 5, 6, 8, 10, 12 and 16.
- Overall Length (L): 5, 6, 8, 10, 12, 15, 20 and 25.
- Operating Temperature Range: -50 to 140 (°C)
- Loctite (thread locking adhesive) is recommended to affix bushings.
- Applicable to linear and rotary motion.
- BFLB is specifically effective if the mating material is soft such as stainless steel, aluminum, brass, etc.

Product TOP

Part Number

Incomplete part number.
Please use left hand selections to complete a part number.

: 30; 60; 90

Part Number
BFLB6-5

Part Number	Price	Name	Minimum Order Qty.	Volume Discount	Days to Ship	RoHS	Inner Dia. d (Ø)	Outer Dia. D (Ø)	Overall Length L (mm)
	฿ 405.41	OIL FREE BUSH	1 Piece(s)		Same day	10	6	9	5

Basic Information

Type	Straight	Multi-layer	Fluororesin is bonded on the base material (A2017).	Max. Allowable PV Value Range(N/mm²•m/s)	0.3~1.0
Max. Allowable PV Value(N/mm²•m/s)	0.98	Max. Allowable Surface Pressure P(N/mm²)	6	Maximum Allowable Velocity(m/s)	3.33
Operating Temperature Range(°C)	-50::140

Please check the type/dimensions/specifications of the part BFLB6-5 in the Oil Free Bushings - High Precision series.

The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .

Products with similar specification

Part Number
BFLB10-20
BFLB10-6
BFLB10-8
BFLB6-6
BFLB6-8
BFLB8-10

Price	Minimum Order Qty	Volume Discount	Days to Ship	RoHS	Inner Dia. d (Ø)	Outer Dia. D (Ø)	Overall Length L (mm)
฿ 626.54	1 Piece(s)		Same day	10	10	13	20
฿ 442.26	1 Piece(s)	Available	3 Day(s)	10	10	13	6
฿ 442.26	1 Piece(s)	Available	Same day	10	10	13	8
฿ 405.41	1 Piece(s)	Available	Same day	10	6	9	6
฿ 405.41	1 Piece(s)	Available	Same day	10	6	9	8
฿ 464.37	1 Piece(s)	Available	Same day	10	8	11	10
