Linear Bushing Housing Units with Dowel Holes - Wide Blocks - Single / Double
Brand :
MISUMI
Caution
- Except for MX Lubrication Units, MISUMI Linear Bushings are applied with anti-rust oil harmless to lubricants. After cleaning and drying the bushings, grease application is recommended before use.
- Recommended Cleaning Method: Ultrasonic cleaning machine or white kerosene
Product Description
MISUMI original standard. Compared to the standard type, the dowel hole type reduces equipment assembly time and improves position repeatability.
| Type | Linear Bushings | Housing | Ambient Operating Temp. | |||
| Single | Double | Long | [ M ] Material | [ S ] Surface Treatment | ||
| LHBBN | LHBBWN | LHBBLN | LMU | Aluminum Alloy | Clear Anodizing | -20~80°C |

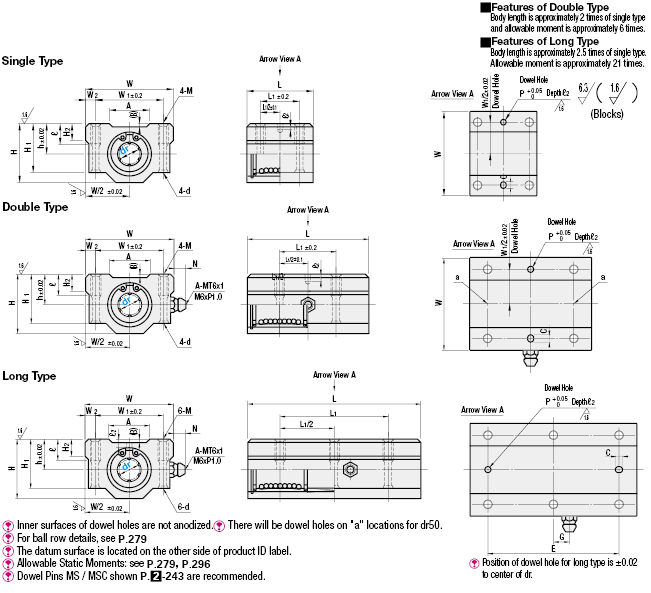

Specifications/Overview
Installation Example
■Features of Dowel Hole Type
·By the dowel holes provided on the mounting interface surface, locating workpieces using the side datum can be eliminated. (See Installation Example above)
·Machining steps can be reduced for the top plate to be mounted on the block.
| Conventional Type | Dowel Hole Type | |
 |  | |
| Locating with plate end datum | Locating with dowel holes |
·By the dowel holes provided on the mounting interface surface, locating workpieces using the side datum can be eliminated. (See Installation Example above)
·Machining steps can be reduced for the top plate to be mounted on the block.
