Shaft Collar (Clamp) - 2-Hole / 2-Tapped (Coarse)
Brand :
MISUMI
Caution
Product Description
Since the mounting hole is machined, this product can be mounted on plates and brackets.

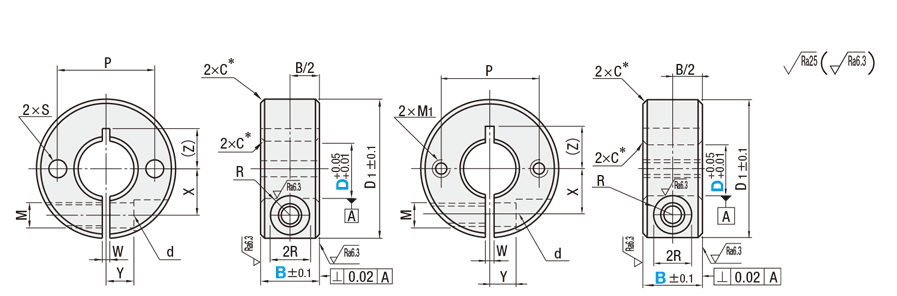

Dimensional Drawing
2-Hole
2-Tapped (Coarse)
* D6 to D25:C0.5
D30 to D50:C1
| Type | [ M ] Material | [ S ] Surface Treatment | [ A ] Accessory | |||
| Standard | Compact | |||||
| 2-Hole | 2-Tapped | 2-Hole | 2-Tapped | Hex Socket Head Cap Screw 1 pc. | ||
| SCSM | SCSW | SCSMJ | SCSWJ | S45C Equivalent | Black Oxide | [ M ] SCM435 Equivalent |
| PSCSM | PSCSW | PSCSMJ | PSCSWJ | Electroless Nickel Plating | [ M ] SUS304 Equivalent | |
| SSCSM | SSCSW | SSCSMJ | SSCSWJ | SUS304 Equivalent | — | |
| SCSMA | SCSWA | — | — | 2000 Series Aluminum Alloy | — | |
| SCSMAW | SCSWAW | — | — | Clear Anodize | ||
The recommended tolerance is g6, h5, or f8 for the shaft (outer diameter tolerance), and g6 or h7 for the rotating shaft (outer diameter tolerance).
[ ! ] The included hex socket head cap bolt is for tightening the slit section.
Mounting bolts are not included for either the hole or tapping type, so please prepare them separately.
· For the hole type, please check the hole diameter using the "S" dimension in the specification table.
· For the tapping type, please check the bolt size using the "M1" dimension in the specification table.
