Cartridge Heaters -With Stopper Flange-
Brand :
MISUMI
Caution
Product Description
[For those who don't have the size they want!!!]
We can make it for you. Please request a quote first.

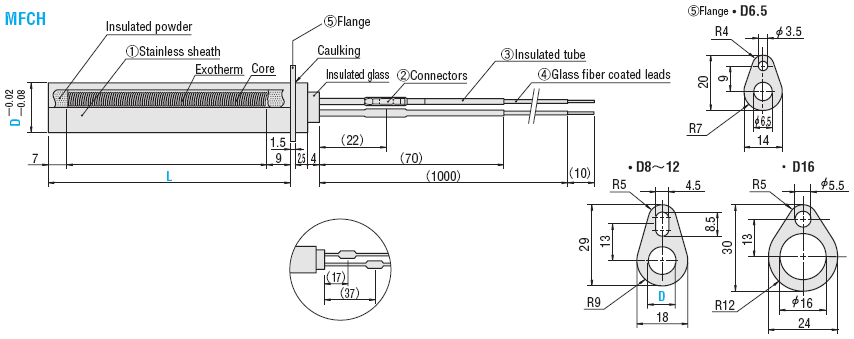

(1)Stainless sheath
SUS321(S32100)(1.4541)
(5)Flange
SUS304(S30400)(1.4301)
(2)(3)(4)Heat resistance:180°C or lower
Connector position (22) becomes two separative positions 17 and 37 for two connectors when D6.5 and 8.
SUS321(S32100)(1.4541)(5)Flange
SUS304(S30400)(1.4301)(2)(3)(4)Heat resistance:180°C or lower
Connector position (22) becomes two separative positions 17 and 37 for two connectors when D6.5 and 8.Specifications
| V (Voltage) | W (Wattage) | W/cm2 (Watt density) | Lead nominal cross-sectional area [mm2,sq] | Part Number | L | V | W | |
| Type | D | |||||||
| 200 | 110 | 15.9 | 0.75 | MFCH | 6.5 | 50 | 200 | 110 |
| 250 | 14.6 | 100 | 250 | |||||
| 320 | 15.2 | 8 | 100 | 320 | ||||
| 270 | 8.0 | 150 | 270 | |||||
| 500 | 14.9 | 500 | ||||||
| 330 | 8.0 | 180 | 330 | |||||
| 620 | 15.0 | 620 | ||||||
| 500 | 10.8 | 200 | 500 | |||||
| 690 | 14.9 | 690 | ||||||
| 800 | 17.3 | 800 | ||||||
| 700 | 11.9 | 250 | 700 | |||||
| 500 | 11.9 | 10 | 150 | 500 | ||||
| 720 | 14.0 | 180 | 720 | |||||
| 450 | 7.8 | 200 | 450 | |||||
| 650 | 11.3 | 650 | ||||||
| 860 | 14.9 | 860 | ||||||
| 880 | 12.0 | 250 | 880 | |||||
| 1100 | 15.0 | 1.25 | 1100 | |||||
| 700 | 11.3 | 12 | 180 | 700 | ||||
| 820 | 11.8 | 200 | 820 | |||||
| 1050 | 15.1 | 1050 | ||||||
| 1300 | 14.7 | 250 | 1300 | |||||
| 1200 | 13.0 | 16 | 200 | 1200 | ||||
| 1500 | 10.5 | 2.0 | 300 | 1500 | ||||
Color of insulated glass of D16 is white, instead of pink for other D dimensions, however, no difference in quality compared with other D dimensions of D6.5~12 with pink color.More Information
■Characteristics
•A flange prevents the cartridge heaters coming off from the mold.
•It is the same size with the plate side hole of flange of MCHJ (
Click here).(D8~12)
