ดู Roller Economy Series ทั้งหมด

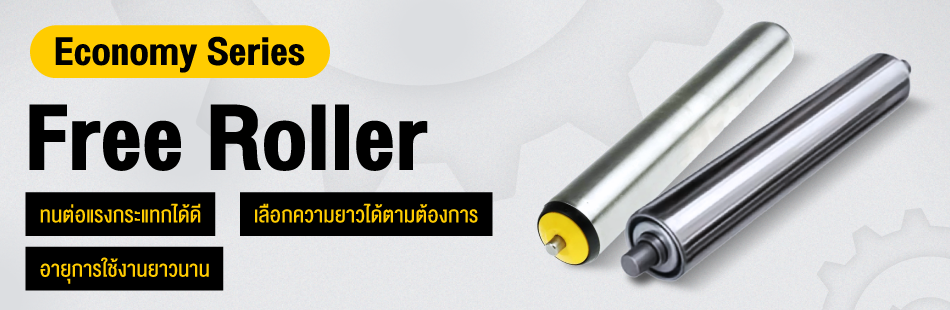

Free Roller Economy Series ทนต่อแรงกระแทกได้ดี เลือกความยาวได้ตามต้องการ อายุการใช้งานยาวนาน

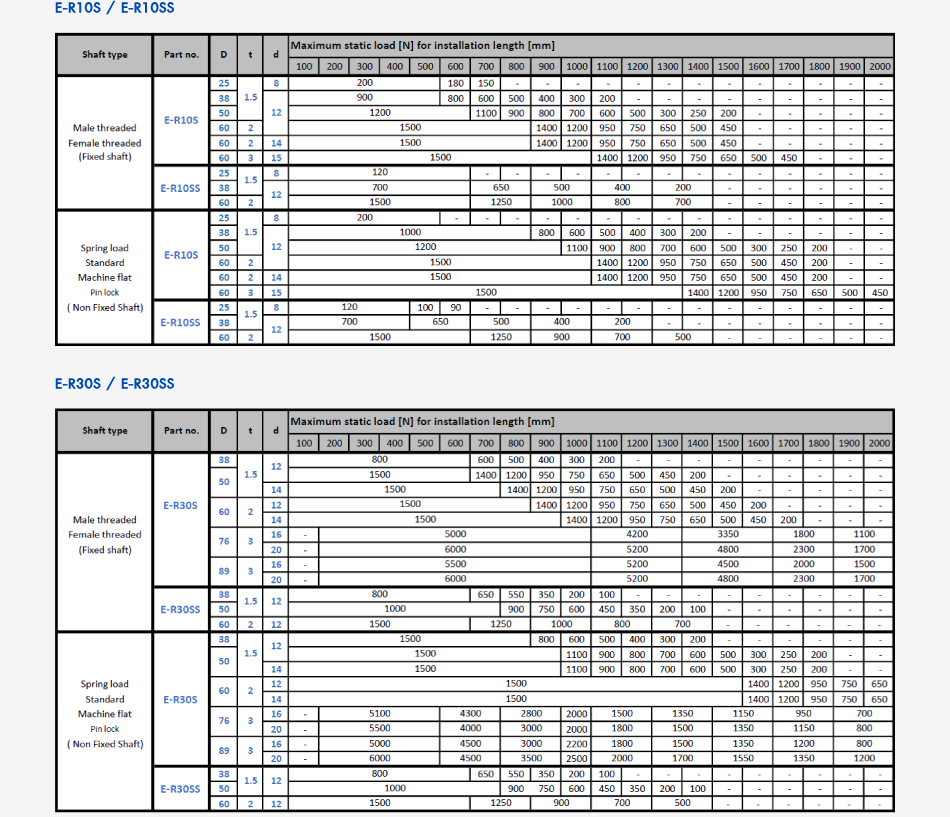

คุณสมบัติผลิตภัณฑ์

Shaft Type	Part No.	D	t	d	Maximum static load [N] for installation length [mm]
Shaft Type	Part No.	D	t	d	100	200	300	400	500	600	700	800	900	1000	1100	1200	1300	1400	1500	1600	1700	1800	1900	2000
Male threaded Female threaded (Fixed Shaft)	E-R10S	25	1.5	8	200					180	150	-
		38		12	900					800	600	500	400	300	200	-
		50			1200						1100	900	800	700	600	500	300	250	200	-
		60	2		1500								1400	1200	950	750	650	500	450	-
		60	2	14	1500								1400	1200	950	750	650	500	450	-
		60	3	15	1500										1400	1200	950	750	650	500	450	-
	E-R10SS	25	1.5	8	120						-
		38	1.5	12	700						650		500		400		200		-
		60	2	12	1500						1250		1000		800		700		-
Spring load Standard Machine flat Pin lock (Non Fixed Shaft)	E-R10S	25	1.5	8	200					-
		38		12	1000								800	600	500	400	300	200	-
		50			1200									1100	900	800	700	600	500	300	250	200	-
		60	2		1500										1400	1200	950	750	650	500	450	200	-
		60	2	14	1500										1400	1200	950	750	650	500	450	200	-
		60	3	15	1500													1400	1200	950	750	650	500	450
	E-R10SS	25	1.5	8	120				100	90	-
		38	1.5	12	700				650		500		400		200		-
		60	2	12	1500						1250		900		700		500		-

Shaft Type	Part No.	D	t	d	Maximum static load [N] for installation length [mm]
Shaft Type	Part No.	D	t	d	100	200	300	400	500	600	700	800	900	1000	1100	1200	1300	1400	1500	1600	1700	1800	1900	2000
Male threaded Female threaded (Fixed Shaft)	E-R30S	38	1.5	12	800						600	500	400	300	200	-
		50		12	1500						1400	1200	950	750	650	500	450	200	-
		50		14	1500							1400	1200	950	750	650	500	450	200	-
		60	2	12	1500								1400	1200	950	750	650	500	450	200	-
		60	2	14	1500									1400	1200	950	750	650	500	450	200	-
		76	3	16	-	5000									4200			3350			1800		1100
		76	3	20	-	6000									5200			4800			2300		1700
		89	3	16	-	5500									5200			4500			2000		1500
		89	3	20	-	6000									5200			4800			2300		1700
	E-R30SS	38	1.5	12	800						650	550	350	200	100	-
		50	1.5	12	1000							900	750	600	450	350	200	100	-
		60	2	12	1500						1250		1000		800		700		-
Spring load Standard Machine flat Pin lock (Non Fixed Shaft)	E-R30S	38	1.5	12	1500								800	600	500	400	300	200	-
		50		12	1500									1100	900	800	700	600	500	300	250	200	-
		50		14	1500									1100	900	800	700	600	500	300	250	200	-
		60	2	12	1500															1400	1200	950	750	650
		60	2	14	1500															1400	1200	950	750	650
		76	3	16	-	5100				4300		2800		2000	1500		1350		1150		950		700
		76	3	20	-	5500				4000		3000		2000	1800		1500		1350		1150		800
		89	3	16	-	5000				4500		3000		2200	1800		1500		1350		1200		800
		89	3	20	-	6000				4500		3500		2500	2000		1700		1550		1350		1200
	E-R30SS	38	1.5	12	800						650	550	350	200	100	-
		50	1.5	12	1000							900	750	600	450	350	200	100	-
		60	2	12	1500						1250		900		700		500		-
