Pivot Pins - D-Cut

Pivot Pins - D-Cut
You can add up to 6 items per a category to the compare list.

Brand :

MISUMI

MISUMI

Part Number :
36 Part Numbers Available

CLSW4-[10-70/0.1]-F[2-20/1]-T[2-20/1]

CLSW5-[10-100/0.1]-F[2-20/1]-T[2-20/1]

CLSW6-[10-150/0.1]-F[2-30/1]-T[2-30/1]

CLSW8-[10-150/0.1]-F[2-30/1]-T[2-30/1]

CLSW10-[15-150/0.1]-F[2-30/1]-T[2-30/1]

CLSW12-[15-200/0.1]-F[5-40/1]-T[5-40/1]

CLSW13-[20-200/0.1]-F[5-40/1]-T[5-40/1]

CLSW14-[20-200/0.1]-F[5-30/1]-T[5-30/1]

CLSW15-[20-200/0.1]-F[5-40/1]-T[5-40/1]

CLSW16-[20-200/0.1]-F[5-40/1]-T[5-40/1]

CLSW20-[20-200/0.1]-F[5-40/1]-T[5-40/1]

CLSW25-[20-200/0.1]-F[5-40/1]-T[5-40/1]

CLSWH4-[10-70/0.1]-F[2-20/1]-T[2-20/1]

CLSWH5-[10-100/0.1]-F[2-20/1]-T[2-20/1]

CLSWH6-[10-150/0.1]-F[2-30/1]-T[2-30/1]

CLSWH8-[10-150/0.1]-F[2-30/1]-T[2-30/1]

CLSWH10-[15-150/0.1]-F[2-30/1]-T[2-30/1]

CLSWH12-[15-200/0.1]-F[5-40/1]-T[5-40/1]

CLSWH13-[20-200/0.1]-F[5-40/1]-T[5-40/1]

CLSWH14-[20-200/0.1]-F[5-30/1]-T[5-30/1]

CLSW4-[10-70/0.1]-F[2-20/1]-T[2-20/1]
CLSW4-[10-70/0.1]-F[2-20/1]-T[2-20/1]

Copy Part Number URL to Clipboard

The part number URL has been copied into your clipboard.

Close

loading
  • Price :
    ---
  • Qty :
  • Days to Ship :
    ---
  • Total Price :
    ---

Select part number to Order Now/ Add to Cart

PDFP.1-918-2014

Unit examples related to this product
Long Stroke Slide Mechanism
View other unit examples
CAD Download
My Components
My Components
Similar ProductsSimilar Products
Product DetailProduct Detail

Product Description

[Specification expansion]
Added electroless nickel plating.
Added hard chrome plating with excellent wear resistance.
[Features]
Both end chamfers provide strong rotation prevention.

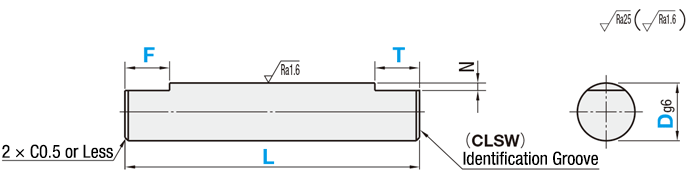

Hinge Pins - with Two Set Screw Flats:Related Image

Type[ M ]Material[ H ]Hardness[ S ]Surface Treatment
CLSWS45C Equivalent-Blackening
CLSWH40~45HRC
SCLSWSUS304 Equivalent--

Specifications

Part Number-L-F-T
CLSWH15
-
120.5
-
F30
-
T30
Hinge Pins - with Two Set Screw Flats:Related Image
D Tolerance (g6)
4~6-0.004
-0.012
8 / 10-0.005
-0.014
12~16-0.006
-0.017
20 / 25-0.007
-0.020

Part Number

  • Incomplete part number.
    Please use left hand selections to complete a part number.
Loading...
30
60
90
  1. 1
Part Number
CLSW4-[10-70/0.1]-F[2-20/1]-T[2-20/1]
CLSW5-[10-100/0.1]-F[2-20/1]-T[2-20/1]
CLSW6-[10-150/0.1]-F[2-30/1]-T[2-30/1]
CLSW8-[10-150/0.1]-F[2-30/1]-T[2-30/1]
CLSW10-[15-150/0.1]-F[2-30/1]-T[2-30/1]
CLSW12-[15-200/0.1]-F[5-40/1]-T[5-40/1]
CLSW13-[20-200/0.1]-F[5-40/1]-T[5-40/1]
CLSW14-[20-200/0.1]-F[5-30/1]-T[5-30/1]
CLSW15-[20-200/0.1]-F[5-40/1]-T[5-40/1]
CLSW16-[20-200/0.1]-F[5-40/1]-T[5-40/1]
CLSW20-[20-200/0.1]-F[5-40/1]-T[5-40/1]
CLSW25-[20-200/0.1]-F[5-40/1]-T[5-40/1]
CLSWH4-[10-70/0.1]-F[2-20/1]-T[2-20/1]
CLSWH5-[10-100/0.1]-F[2-20/1]-T[2-20/1]
CLSWH6-[10-150/0.1]-F[2-30/1]-T[2-30/1]
CLSWH8-[10-150/0.1]-F[2-30/1]-T[2-30/1]
CLSWH10-[15-150/0.1]-F[2-30/1]-T[2-30/1]
CLSWH12-[15-200/0.1]-F[5-40/1]-T[5-40/1]
CLSWH13-[20-200/0.1]-F[5-40/1]-T[5-40/1]
CLSWH14-[20-200/0.1]-F[5-30/1]-T[5-30/1]
CLSWH15-[20-200/0.1]-F[5-40/1]-T[5-40/1]
CLSWH16-[20-200/0.1]-F[5-40/1]-T[5-40/1]
CLSWH20-[20-200/0.1]-F[5-40/1]-T[5-40/1]
CLSWH25-[20-200/0.1]-F[5-40/1]-T[5-40/1]
SCLSW4-[10-70/0.1]-F[2-20/1]-T[2-20/1]
SCLSW5-[10-100/0.1]-F[2-20/1]-T[2-20/1]
SCLSW6-[10-150/0.1]-F[2-30/1]-T[2-30/1]
SCLSW8-[10-150/0.1]-F[2-30/1]-T[2-30/1]
SCLSW10-[15-150/0.1]-F[2-30/1]-T[2-30/1]
SCLSW12-[15-200/0.1]-F[5-40/1]-T[5-40/1]
SCLSW13-[20-200/0.1]-F[5-30/1]-T[5-30/1]
SCLSW14-[20-200/0.1]-F[5-30/1]-T[5-30/1]
SCLSW15-[20-200/0.1]-F[5-40/1]-T[5-40/1]
SCLSW16-[20-200/0.1]-F[5-40/1]-T[5-40/1]
SCLSW20-[20-200/0.1]-F[5-40/1]-T[5-40/1]
SCLSW25-[20-200/0.1]-F[5-30/1]-T[5-30/1]
Part NumberPriceNameMinimum Order Qty.Volume DiscountDays to ShipRoHSShaft Dia. D
(mm) 		Material Hardness Surface Treatment Material Detail L Dimension
(mm) 		F
(mm) 		T
(mm)

-

CANTILEVER PIN 1 Piece(s) 4 Day(s) 104SteelNot Spec-designedBlack OxideS45C Equivalent10 ～ 702 ～ 202 ～ 20

-

CANTILEVER PIN 1 Piece(s) 4 Day(s) 105SteelNot Spec-designedBlack OxideS45C Equivalent10 ～ 1002 ～ 202 ～ 20

-

CANTILEVER PIN 1 Piece(s) 4 Day(s) 106SteelNot Spec-designedBlack OxideS45C Equivalent10 ～ 1502 ～ 302 ～ 30

-

CANTILEVER PIN 1 Piece(s) 4 Day(s) 108SteelNot Spec-designedBlack OxideS45C Equivalent10 ～ 1502 ～ 302 ～ 30

-

CANTILEVER PIN 1 Piece(s) 4 Day(s) 1010SteelNot Spec-designedBlack OxideS45C Equivalent15 ～ 1502 ～ 302 ～ 30

-

CANTILEVER PIN 1 Piece(s) 4 Day(s) 1012SteelNot Spec-designedBlack OxideS45C Equivalent15 ～ 2005 ～ 405 ～ 40

-

CANTILEVER PIN 1 Piece(s) 4 Day(s) 1013SteelNot Spec-designedBlack OxideS45C Equivalent20 ～ 2005 ～ 405 ～ 40

-

CANTILEVER PIN 1 Piece(s) 4 Day(s) 1014SteelNot Spec-designedBlack OxideS45C Equivalent20 ～ 2005 ～ 305 ～ 30

-

CANTILEVER PIN 1 Piece(s) 4 Day(s) 1015SteelNot Spec-designedBlack OxideS45C Equivalent20 ～ 2005 ～ 405 ～ 40

-

CANTILEVER PIN 1 Piece(s) 4 Day(s) 1016SteelNot Spec-designedBlack OxideS45C Equivalent20 ～ 2005 ～ 405 ～ 40

-

CANTILEVER PIN 1 Piece(s) 4 Day(s) 1020SteelNot Spec-designedBlack OxideS45C Equivalent20 ～ 2005 ～ 405 ～ 40

-

CANTILEVERPIN 1 Piece(s) 8 Day(s) 1025SteelNot Spec-designedBlack OxideS45C Equivalent20 ～ 2005 ～ 405 ～ 40

-

CANTILEVER PIN 1 Piece(s) 4 Day(s) 104SteelHardness RequirementBlack OxideS45C Equivalent10 ～ 702 ～ 202 ～ 20

-

CANTILEVER PIN 1 Piece(s) 4 Day(s) 105SteelHardness RequirementBlack OxideS45C Equivalent10 ～ 1002 ～ 202 ～ 20

-

CANTILEVER PIN 1 Piece(s) 4 Day(s) 106SteelHardness RequirementBlack OxideS45C Equivalent10 ～ 1502 ～ 302 ～ 30

-

CANTILEVER PIN 1 Piece(s) 4 Day(s) 108SteelHardness RequirementBlack OxideS45C Equivalent10 ～ 1502 ～ 302 ～ 30

-

CANTILEVER PIN 1 Piece(s) 4 Day(s) 1010SteelHardness RequirementBlack OxideS45C Equivalent15 ～ 1502 ～ 302 ～ 30

-

CANTILEVER PIN 1 Piece(s) 4 Day(s) 1012SteelHardness RequirementBlack OxideS45C Equivalent15 ～ 2005 ～ 405 ～ 40

-

CANTILEVER PIN 1 Piece(s) 4 Day(s) 1013SteelHardness RequirementBlack OxideS45C Equivalent20 ～ 2005 ～ 405 ～ 40

-

CANTILEVER PIN 1 Piece(s) 4 Day(s) 1014SteelHardness RequirementBlack OxideS45C Equivalent20 ～ 2005 ～ 305 ～ 30

-

CANTILEVER PIN 1 Piece(s) 4 Day(s) 1015SteelHardness RequirementBlack OxideS45C Equivalent20 ～ 2005 ～ 405 ～ 40

-

CANTILEVER PIN 1 Piece(s) 4 Day(s) 1016SteelHardness RequirementBlack OxideS45C Equivalent20 ～ 2005 ～ 405 ～ 40

-

CANTILEVER PIN 1 Piece(s) 4 Day(s) 1020SteelHardness RequirementBlack OxideS45C Equivalent20 ～ 2005 ～ 405 ～ 40

-

CANTILEVERPIN 1 Piece(s) 8 Day(s) 1025SteelHardness RequirementBlack OxideS45C Equivalent20 ～ 2005 ～ 405 ～ 40

-

CANTILEVER PIN 1 Piece(s) 4 Day(s) 104Stainless SteelNot Spec-designedNot ProvidedSUS304 (Equivalent)10 ～ 702 ～ 202 ～ 20

-

CANTILEVER PIN 1 Piece(s) 4 Day(s) 105Stainless SteelNot Spec-designedNot ProvidedSUS304 (Equivalent)10 ～ 1002 ～ 202 ～ 20

-

CANTILEVER PIN 1 Piece(s) 4 Day(s) 106Stainless SteelNot Spec-designedNot ProvidedSUS304 (Equivalent)10 ～ 1502 ～ 302 ～ 30

-

CANTILEVER PIN 1 Piece(s) 4 Day(s) 108Stainless SteelNot Spec-designedNot ProvidedSUS304 (Equivalent)10 ～ 1502 ～ 302 ～ 30

-

CANTILEVER PIN 1 Piece(s) 4 Day(s) 1010Stainless SteelNot Spec-designedNot ProvidedSUS304 (Equivalent)15 ～ 1502 ～ 302 ～ 30

-

CANTILEVER PIN 1 Piece(s) 4 Day(s) 1012Stainless SteelNot Spec-designedNot ProvidedSUS304 (Equivalent)15 ～ 2005 ～ 405 ～ 40

-

CANTILEVER PIN 1 Piece(s) 4 Day(s) 1013Stainless SteelNot Spec-designedNot ProvidedSUS304 (Equivalent)20 ～ 2005 ～ 305 ～ 30

-

CANTILEVER PIN 1 Piece(s) 4 Day(s) 1014Stainless SteelNot Spec-designedNot ProvidedSUS304 (Equivalent)20 ～ 2005 ～ 305 ～ 30

-

CANTILEVER PIN 1 Piece(s) 4 Day(s) 1015Stainless SteelNot Spec-designedNot ProvidedSUS304 (Equivalent)20 ～ 2005 ～ 405 ～ 40

-

CANTILEVER PIN 1 Piece(s) 4 Day(s) 1016Stainless SteelNot Spec-designedNot ProvidedSUS304 (Equivalent)20 ～ 2005 ～ 405 ～ 40

-

CANTILEVER PIN 1 Piece(s) 4 Day(s) 1020Stainless SteelNot Spec-designedNot ProvidedSUS304 (Equivalent)20 ～ 2005 ～ 405 ～ 40

-

CANTILEVERPIN 1 Piece(s) 8 Day(s) 1025Stainless SteelNot Spec-designedNot ProvidedSUS304 (Equivalent)20 ～ 2005 ～ 305 ～ 30

Loading...

  1. 1

More Information

Example

Hinge Pins - with Two Set Screw Flats:Related Image


Basic Information

Mounting Method Set Screw (Set Screw Flat, D-Cut) Basic Shape Straight Type L Dimension Configurable
Hex Socket Not Provided Number of Chamfering Positions 2 Places
