Lexium 28 Servo Motors BCH2
Brand :
Schneider Electric
Caution
Product Description

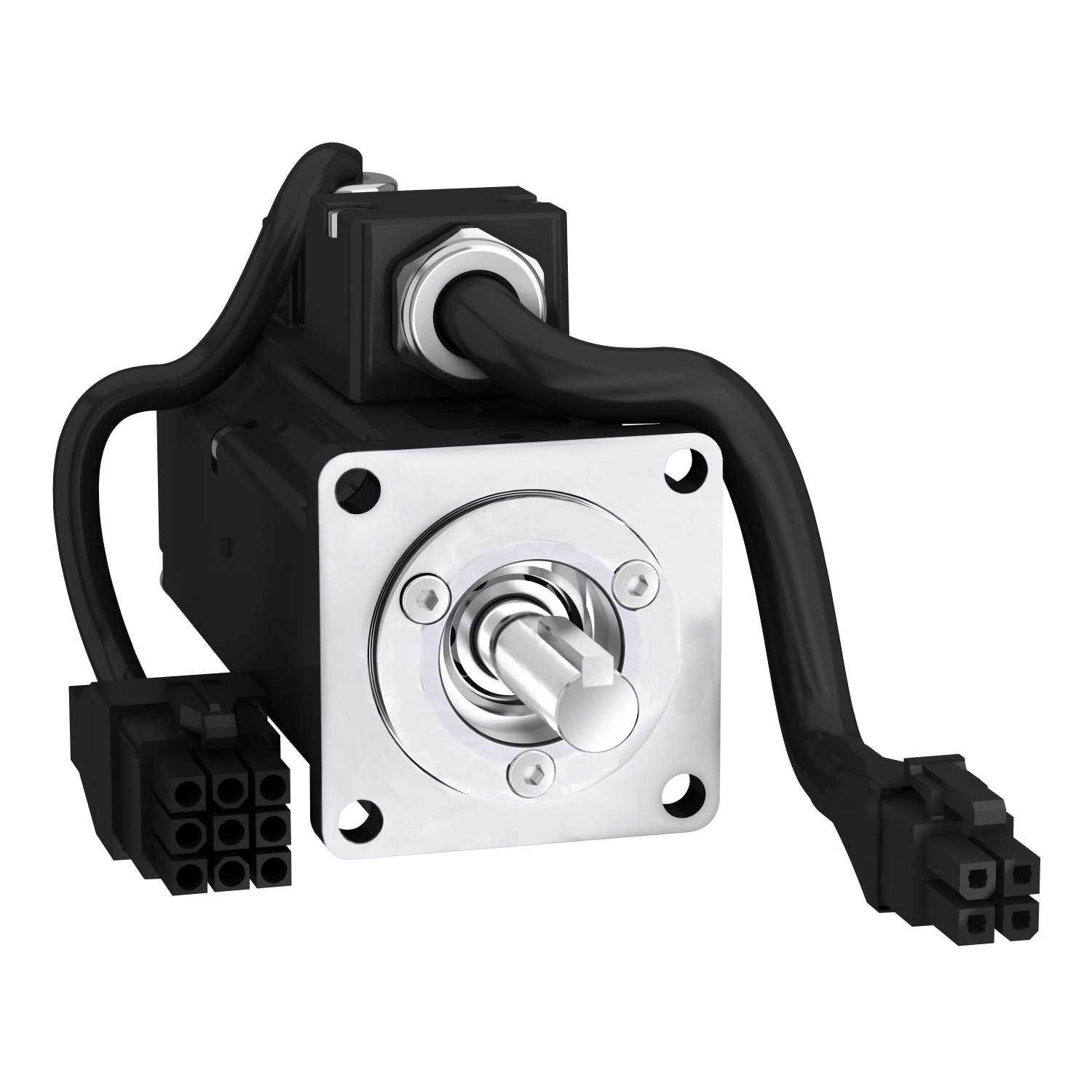

BCH2 servo motors, with a 3-phase stator and a rotor with rare earth based permanent magnets, consist of:
1 Connector for the power cable
2 Connector for the encoder cable
3 Casing with RAL 9005 opaque black paint coating
4 Smooth or keyed shaft end (depending on the model)
5 4-point axial mounting flange (Flange is mechanically compatible for mountingwith Asian style servo motors).
Product Specifications
| Product Code | Descriptions |
| BCH2LD0233CA5C | Servo motor BCH, Lexium 28, 60mm, 200W, 0.16kg.cm², with oil seal, with key, leads connection |
| BCH2LD0233CF5C | Servo motor BCH, Lexium 28, 60mm, 200W, 0.17kg.cm², with oil seal, with key, brake, leads connection |
| BCH2LF0733CA5C | Servo motor BCH, Lexium 28, 80mm, 750W, 1,19kg.cm², with oil seal, with key, leads connection |
| BCH2MB0133CF5C | Servo motor BCH, Lexium 28, 40mm, 100W, 0.076kg.cm², with oil seal, with key, brake, leads connection |
