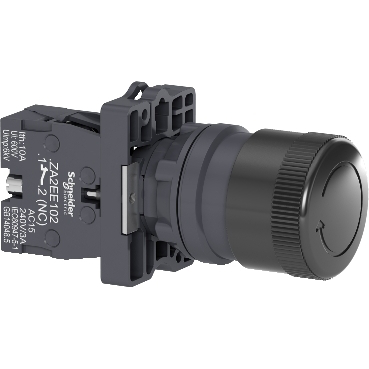

Complete emergency switching off push-button Harmony Easy XA2
Brand :
Schneider Electric
Caution
Product Description
Emergency Swtiching Off Push-Button Ø22 NOn Trigger Turn Release 1NC
| Product Code | Range of product | Product or component type | Device short name | Vibration resistance | Shock resistance | Fixing mode | Electrical durability | Mechanical durability | Width | Height | Depth | Net weight | IP degree of protection | Standards | Ambient air temperature for operation | Ambient air temperature for storage | Product certifications | Sustainable offer status | EU RoHS Directive | Mercury free | RoHS exemption information | China RoHS Regulation | Environmental Disclosure | Circularity Profile | WEEE | REACH Regulation | REACH free of SVHC | Tightening torque | Operating position | [Ui] rated insulation voltage | [Ith] conventional free air thermal current | Overvoltage category | IK degree of protection | Mounting diameter | Contacts type and composition | Connections - terminals | Bezel material | Short-circuit protection | [Uimp] rated impulse withstand voltage | Contact operation | Positive opening | Protective treatment | Type of operator | Shape of signaling unit head | Operator profile | [Ie] rated operational current | Electrical reliability | Device mounting | Reset | Fixing center |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XA2ES422 | Harmony Easy XA2 | Complete emergency switching off push-button | XA2 | 10 gn (f= 40 to 500 Hz) conforming to IEC 60068-2-6 | 70 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 | Fixing nut: 2 to 2.4 N.m | 500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 | 100000 cycles | 42 mm | 30 mm | 73.7 mm | 0.056 kg | IP65 conforming to IEC 60529 | GB 14048.1 IEC 60947-1 IEC 60947-5-1 GB 14048.5 | -25 to 55 ℃ | -40 to 70 ℃ | CCC CE | Green Premium product | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | Yes | Yes | China RoHS declaration | Product Environmental Profile | End of Life Information | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins | REACH Declaration | Yes | 0.8 N.m | Any position | 600 V conforming to IEC 60947-1 | 10 A | Class I conforming to IEC 536 | IK03 conforming to IEC 60529 | 22 mm | 1 NC | Screw clamp terminal, <= 2 x 1.5 mm2 Screw clamp terminal, <= 1 x 2.5 mm2 Screw clamp terminal, >= 1 x 0.5 mm2 Faston terminals, connection size: 6.3 mm | Plastic | 10 A gL fuse conforming to IEC 60269-1 | 6 kV IEC 60947-1 | Slow-break | With NC contact | TC | Turn to release | Round | Black mushroom Ø 30 mm | 3 A at 240 V, AC-15, A600 0.27 A at 250 V, DC-13, Q600 | Λ < 10exp(-8) at 24 V | Fixing hole - diameter: 22 mm | Turn to release | >= 30 x 40 mm (panel) - thickness: 1 to 5 mm |
| XA2ES442 | Harmony Easy XA2 | Complete emergency switching off push-button | XA2 | 10 gn (f= 40 to 500 Hz) conforming to IEC 60068-2-6 | 70 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 | Fixing nut: 2 to 2.4 N.m | 500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 | 100000 cycles | 42 mm | 30 mm | 73.7 mm | 0.056 kg | IP65 conforming to IEC 60529 | IEC 60947-5-1 GB 14048.5 IEC 60947-1 GB 14048.1 | -25 to 55 ℃ | -40 to 70 ℃ | CE CCC | Green Premium product | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | Yes | Yes | China RoHS declaration | Product Environmental Profile | End of Life Information | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins | REACH Declaration | Yes | 0.8 N.m | Any position | 600 V conforming to IEC 60947-1 | 10 A | Class I conforming to IEC 536 | IK03 conforming to IEC 60529 | 22 mm | 1 NC | Screw clamp terminal, <= 2 x 1.5 mm2 Screw clamp terminal, <= 1 x 2.5 mm2 Screw clamp terminal, >= 1 x 0.5 mm2 Faston terminals, connection size: 6.3 mm | Plastic | 10 A gL fuse conforming to IEC 60269-1 | IEC 60947-1 6 kV | Slow-break | With NC contact | TC | Turn to release | Round | Red mushroom Ø 30 mm | 3 A at 240 V, AC-15, A600 0.27 A at 250 V, DC-13, Q600 | Λ < 10exp(-8) at 24 V | Fixing hole - diameter: 22 mm | Turn to release | >= 30 x 40 mm (panel) - thickness: 1 to 5 mm |
| XA2ES542 | Harmony Easy XA2 | Complete emergency switching off push-button | XA2 | 10 gn (f= 40 to 500 Hz) conforming to IEC 60068-2-6 | 70 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 | Fixing nut: 2 to 2.4 N.m | 500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 | 100000 cycles | 42 mm | 30 mm | 74.2 mm | 0.058 kg | IP65 conforming to IEC 60529 | IEC 60947-1 GB 14048.1 GB 14048.5 IEC 60947-5-1 | -25 to 55 ℃ | -40 to 70 ℃ | CCC CE | Green Premium product | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | Yes | Yes | China RoHS declaration | Product Environmental Profile | End of Life Information | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins | REACH Declaration | Yes | 0.8 N.m | Any position | 600 V conforming to IEC 60947-1 | 10 A | Class I conforming to IEC 536 | IK03 conforming to IEC 60529 | 22 mm | 1 NC | Screw clamp terminal, <= 2 x 1.5 mm2 Screw clamp terminal, <= 1 x 2.5 mm2 Screw clamp terminal, >= 1 x 0.5 mm2 Faston terminals, connection size: 6.3 mm | Plastic | 10 A gL fuse conforming to IEC 60269-1 | IEC 60947-1 6 kV | Slow-break | With NC contact | TC | Turn to release | Round | Red mushroom Ø 40 mm | 3 A at 240 V, AC-15, A600 0.27 A at 250 V, DC-13, Q600 | Λ < 10exp(-8) at 24 V | Fixing hole - diameter: 22 mm | Turn to release | >= 30 x 40 mm (panel) - thickness: 1 to 5 mm |
| XA2ES642 | Harmony Easy XA2 | Complete emergency switching off push-button | XA2 | 10 gn (f= 40 to 500 Hz) conforming to IEC 60068-2-6 | 70 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 | Fixing nut: 2 to 2.4 N.m | 500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 | 100000 cycles | 42 mm | 30 mm | 73.7 mm | 0.064 kg | IP65 conforming to IEC 60529 | IEC 60947-1 IEC 60947-5-1 GB 14048.5 GB 14048.1 | -25 to 55 ℃ | -40 to 70 ℃ | CCC CE | Green Premium product | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | Yes | Yes | China RoHS declaration | Product Environmental Profile | End of Life Information | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins | REACH Declaration | Yes | 0.8 N.m | Any position | 600 V conforming to IEC 60947-1 | 10 A | Class I conforming to IEC 536 | IK03 conforming to IEC 60529 | 22 mm | 1 NC | Screw clamp terminal, <= 2 x 1.5 mm2 Screw clamp terminal, <= 1 x 2.5 mm2 Screw clamp terminal, >= 1 x 0.5 mm2 Faston terminals, connection size: 6.3 mm | Plastic | 10 A gL fuse conforming to IEC 60269-1 | IEC 60947-1 6 kV | Slow-break | With NC contact | TC | Turn to release | Round | Red mushroom Ø 60 mm | 3 A at 240 V, AC-15, A600 0.27 A at 250 V, DC-13, Q600 | Λ < 10exp(-8) at 24 V | Fixing hole - diameter: 22 mm | Turn to release | >= 30 x 40 mm (panel) - thickness: 1 to 5 mm |
