TeSys LRD Thermal Overload Relays
Brand :
Schneider Electric
Caution
Product Description

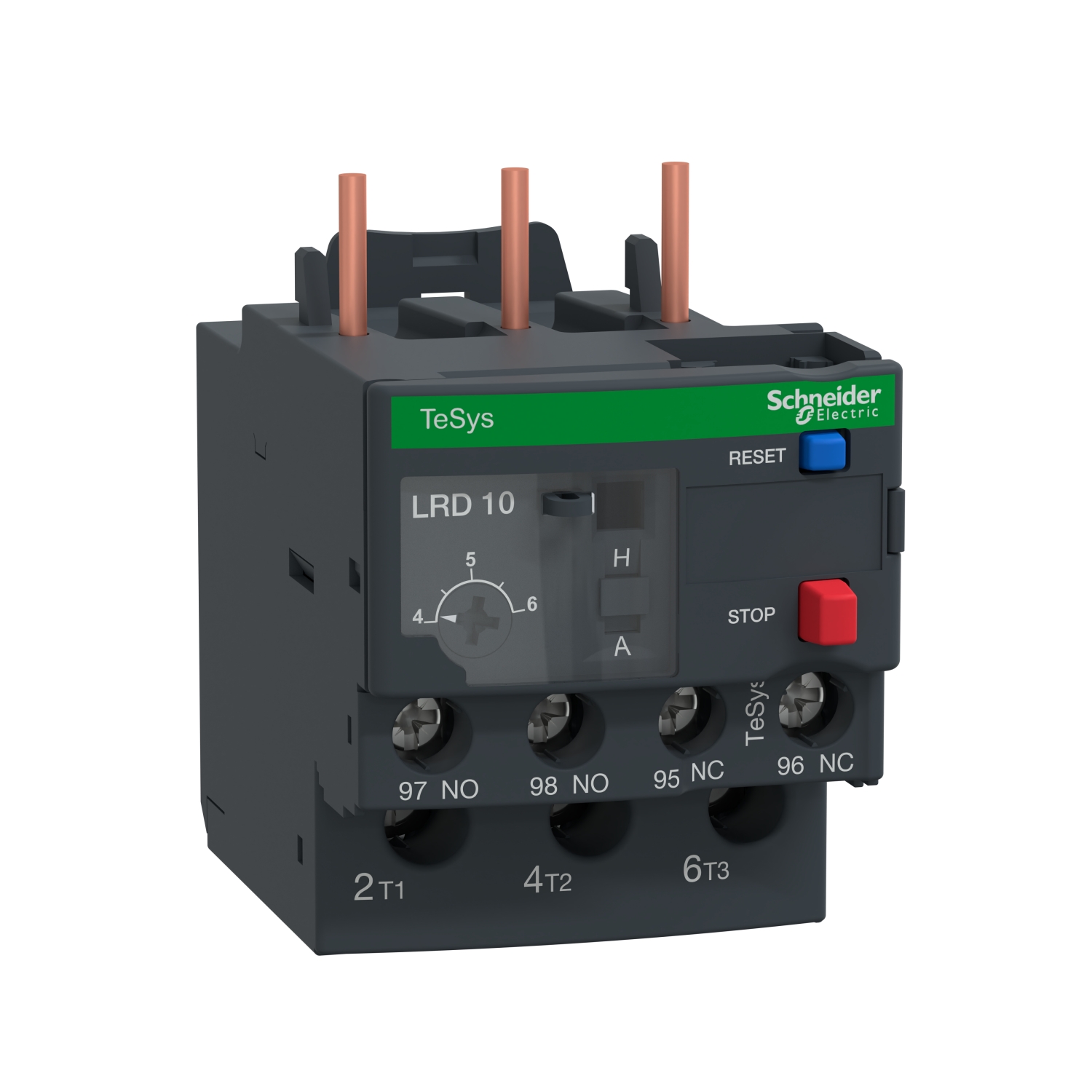

TeSys LRD Thermal Overload Relays
Thermal Overload Relays offer a wide variety of sizes and specification to choose from.
[Feature]
● Product or component type : Differential thermal overload relay
● Product compatibility : for example LRD04 can support LC1D25, LC1D38, LC1D32, LC1D18, LC1D12 and LC1D09
● Relay application : Motor protection
● Thermal overload class : Class 10A conforming to IEC 60947-4-1
● Ambient air temperature for operation : -20 to 60 ℃ without derating conforming to IEC 60947-4-1
| Product Code | Product or component type | Device short name | Depth | Net weight | IP degree of protection | Standards | Ambient air temperature for operation | Ambient air temperature for storage | Product certifications | Sustainable offer status | EU RoHS Directive | Mercury free | RoHS exemption information | China RoHS Regulation | Environmental Disclosure | Circularity Profile | REACH free of SVHC | Warranty | Network frequency | Tightening torque | Range | [Ue] rated operational voltage | [Ui] rated insulation voltage | [Ith] conventional free air thermal current | Product compatibility | Connections - terminals | [Uimp] rated impulse withstand voltage | Protective treatment | Product name | Flame retardance | Control type | Mounting support | Mechanical robustness | Relay application | Phase failure sensitivity | Network type | Thermal protection adjustment range | Tripping threshold | Temperature compensation | Dielectric strength | Permissible current | Width | REACH Regulation | Height | Toxic heavy metal free | Thermal overload class | Connection pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LRD01 | Differential thermal overload relay | LRD | 70 mm | 0.124 kg | IP20 conforming to IEC 60529 | EN 60947-4-1 EN 60947-5-1 IEC 60947-5-1 IEC 60947-4-1 UL 508 ATEX D 94/9/CE CSA C22.2 No 14 | -20 to 60 ℃ without derating conforming to IEC 60947-4-1 | -60 to 70 ℃ | RINA BV CCC GL UL GOST CSA DNV LROS (Lloyds register of shipping) ATEX INERIS | Green Premium product | Compliant EU RoHS Declaration | Yes | Yes | China RoHS declaration | Product Environmental Profile | End of Life Information | Yes | 18 months | 0...400 Hz | Control circuit: 1.7 N.m - on screw clamp terminals Power circuit: 1.7 N.m - on screw clamp terminals | TeSys | 690 V AC 0...400 Hz | Power circuit: 600 V conforming to CSA Power circuit: 600 V conforming to UL Power circuit: 690 V conforming to IEC 60947-4-1 | 5 A for signalling circuit | LC1D25 LC1D09 LC1D12 LC1D18 LC1D38 LC1D32 | Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 solid without cable end Power circuit: screw clamp terminals 1 cable(s) 1.5 to 10 mm2 flexible without cable end Power circuit: screw clamp terminals 1 cable(s) 1 to 4 mm2 flexible with cable end Power circuit: screw clamp terminals 1 cable(s) 1 to 6 mm2 solid without cable end | 6 kV | TH conforming to IEC 60068 | TeSys LRD | V1 conforming to UL 94 | Red push-button: stop Blue push-button: reset | Plate, with specific accessories Rail, with specific accessories Under contactor | Vibrations: 6 Gn conforming to IEC 60068-2-6 Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7 | Motor protection | Tripping current 130 % of Ir on two phase, the last one at 0 | DC AC | 0.1 to 0.16 A | 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 | -20 to 60 ℃ | 6 kV at 50 Hz conforming to IEC 60255-5 | 3 A at 120 V AC-15 for signalling circuit 0.22 A at 125 V DC-13 for signalling circuit | 45 mm | REACH Declaration | - | - | - | - |
| LRD02 | Differential thermal overload relay | LRD | 70 mm | 0.124 kg | IP20 conforming to IEC 60529 | UL 508 IEC 60947-5-1 IEC 60947-4-1 EN 60947-4-1 ATEX D 94/9/CE CSA C22.2 No 14 EN 60947-5-1 | -20 to 60 ℃ without derating conforming to IEC 60947-4-1 | -60 to 70 ℃ | RINA CCC GOST DNV LROS (Lloyds register of shipping) UL CSA BV ATEX INERIS GL | Green Premium product | Compliant EU RoHS Declaration | Yes | Yes | China RoHS declaration | Product Environmental Profile | End of Life Information | Yes | 18 months | 0...400 Hz | Control circuit: 1.7 N.m - on screw clamp terminals Power circuit: 1.7 N.m - on screw clamp terminals | TeSys | 690 V AC 0...400 Hz | Power circuit: 600 V conforming to CSA Power circuit: 600 V conforming to UL Power circuit: 690 V conforming to IEC 60947-4-1 | 5 A for signalling circuit | LC1D25 LC1D38 LC1D12 LC1D09 LC1D18 LC1D32 | Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 solid without cable end Power circuit: screw clamp terminals 1 cable(s) 1.5 to 10 mm2 flexible without cable end Power circuit: screw clamp terminals 1 cable(s) 1 to 4 mm2 flexible with cable end Power circuit: screw clamp terminals 1 cable(s) 1 to 6 mm2 solid without cable end | 6 kV | TH conforming to IEC 60068 | TeSys LRD | V1 conforming to UL 94 | Red push-button: stop Blue push-button: reset | Plate, with specific accessories Rail, with specific accessories Under contactor | Vibrations: 6 Gn conforming to IEC 60068-2-6 Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7 | Motor protection | Tripping current 130 % of Ir on two phase, the last one at 0 | DC AC | 0.16 to 0.25 A | 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 | -20 to 60 ℃ | 6 kV at 50 Hz conforming to IEC 60255-5 | 3 A at 120 V AC-15 for signalling circuit 0.22 A at 125 V DC-13 for signalling circuit | 45 mm | REACH Declaration | - | - | - | - |
| LRD03 | Differential thermal overload relay | LRD | 70 mm | 0.124 kg | IP20 conforming to IEC 60529 | EN 60947-5-1 ATEX D 94/9/CE CSA C22.2 No 14 IEC 60947-5-1 EN 60947-4-1 IEC 60947-4-1 UL 508 | -20 to 60 ℃ without derating conforming to IEC 60947-4-1 | -60 to 70 ℃ | CCC BV UL ATEX INERIS RINA CSA GOST LROS (Lloyds register of shipping) DNV GL | Green Premium product | Compliant EU RoHS Declaration | Yes | Yes | China RoHS declaration | Product Environmental Profile | End of Life Information | Yes | 18 months | 0...400 Hz | Control circuit: 1.7 N.m - on screw clamp terminals Power circuit: 1.7 N.m - on screw clamp terminals | TeSys | 690 V AC 0...400 Hz | Power circuit: 600 V conforming to CSA Power circuit: 600 V conforming to UL Power circuit: 690 V conforming to IEC 60947-4-1 | 5 A for signalling circuit | LC1D25 LC1D18 LC1D38 LC1D12 LC1D32 LC1D09 | Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 solid without cable end Power circuit: screw clamp terminals 1 cable(s) 1.5 to 10 mm2 flexible without cable end Power circuit: screw clamp terminals 1 cable(s) 1 to 4 mm2 flexible with cable end Power circuit: screw clamp terminals 1 cable(s) 1 to 6 mm2 solid without cable end | 6 kV | TH conforming to IEC 60068 | TeSys LRD | V1 conforming to UL 94 | Red push-button: stop Blue push-button: reset | Plate, with specific accessories Rail, with specific accessories Under contactor | Vibrations: 6 Gn conforming to IEC 60068-2-6 Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7 | Motor protection | Tripping current 130 % of Ir on two phase, the last one at 0 | AC DC | 0.25 to 0.4 A | 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 | -20 to 60 ℃ | 6 kV at 50 Hz conforming to IEC 60255-5 | 3 A at 120 V AC-15 for signalling circuit 0.22 A at 125 V DC-13 for signalling circuit | 45 mm | REACH Declaration | - | - | - | - |
| LRD04 | Differential thermal overload relay | LRD | 70 mm | 0.124 kg | IP20 conforming to IEC 60529 | ATEX D 94/9/CE EN 60947-5-1 EN 60947-4-1 IEC 60947-4-1 IEC 60947-5-1 UL 508 CSA C22.2 No 14 | -20 to 60 ℃ without derating conforming to IEC 60947-4-1 | -60 to 70 ℃ | RINA GL UL ATEX INERIS CSA GOST LROS (Lloyds register of shipping) DNV CCC BV | Green Premium product | Compliant EU RoHS Declaration | Yes | Yes | China RoHS declaration | Product Environmental Profile | End of Life Information | Yes | 18 months | 0...400 Hz | Control circuit: 1.7 N.m - on screw clamp terminals Power circuit: 1.7 N.m - on screw clamp terminals | TeSys | 690 V AC 0...400 Hz | Power circuit: 600 V conforming to CSA Power circuit: 600 V conforming to UL Power circuit: 690 V conforming to IEC 60947-4-1 | 5 A for signalling circuit | LC1D25 LC1D38 LC1D32 LC1D18 LC1D12 LC1D09 | Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 solid without cable end Power circuit: screw clamp terminals 1 cable(s) 1.5 to 10 mm2 flexible without cable end Power circuit: screw clamp terminals 1 cable(s) 1 to 4 mm2 flexible with cable end Power circuit: screw clamp terminals 1 cable(s) 1 to 6 mm2 solid without cable end | 6 kV | TH conforming to IEC 60068 | TeSys LRD | V1 conforming to UL 94 | Red push-button: stop Blue push-button: reset | Plate, with specific accessories Rail, with specific accessories Under contactor | Vibrations: 6 Gn conforming to IEC 60068-2-6 Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7 | Motor protection | Tripping current 130 % of Ir on two phase, the last one at 0 | AC DC | 0.4 to 0.63 A | 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 | -20 to 60 ℃ | 6 kV at 50 Hz conforming to IEC 60255-5 | 3 A at 120 V AC-15 for signalling circuit 0.22 A at 125 V DC-13 for signalling circuit | 45 mm | REACH Declaration | - | - | - | - |
| LRD05 | Differential thermal overload relay | LRD | 70 mm | 0.124 kg | IP20 conforming to IEC 60529 | IEC 60947-5-1 EN 60947-4-1 EN 60947-5-1 ATEX D 94/9/CE CSA C22.2 No 14 UL 508 IEC 60947-4-1 | -20 to 60 ℃ without derating conforming to IEC 60947-4-1 | -60 to 70 ℃ | RINA BV GOST CSA GL ATEX INERIS LROS (Lloyds register of shipping) DNV CCC UL | Green Premium product | Compliant EU RoHS Declaration | Yes | Yes | China RoHS declaration | Product Environmental Profile | End of Life Information | Yes | 18 months | 0...400 Hz | Control circuit: 1.7 N.m - on screw clamp terminals Power circuit: 1.7 N.m - on screw clamp terminals | TeSys | 690 V AC 0...400 Hz | Power circuit: 600 V conforming to CSA Power circuit: 600 V conforming to UL Power circuit: 690 V conforming to IEC 60947-4-1 | 5 A for signalling circuit | LC1D25 LC1D38 LC1D12 LC1D32 LC1D18 LC1D09 | Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 solid without cable end Power circuit: screw clamp terminals 1 cable(s) 1.5 to 10 mm2 flexible without cable end Power circuit: screw clamp terminals 1 cable(s) 1 to 4 mm2 flexible with cable end Power circuit: screw clamp terminals 1 cable(s) 1 to 6 mm2 solid without cable end | 6 kV | TH conforming to IEC 60068 | TeSys LRD | V1 conforming to UL 94 | Red push-button: stop Blue push-button: reset | Plate, with specific accessories Rail, with specific accessories Under contactor | Vibrations: 6 Gn conforming to IEC 60068-2-6 Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7 | Motor protection | Tripping current 130 % of Ir on two phase, the last one at 0 | AC DC | 0.63 to 1 A | 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 | -20 to 60 ℃ | 6 kV at 50 Hz conforming to IEC 60255-5 | 3 A at 120 V AC-15 for signalling circuit 0.22 A at 125 V DC-13 for signalling circuit | 45 mm | REACH Declaration | - | - | - | - |
| LRD056 | Differential thermal overload relay | LRD | 70 mm | 0.124 kg | IP20 conforming to IEC 60529 | ATEX D 94/9/CE IEC 60947-4-1 EN 60947-5-1 CSA C22.2 No 14 IEC 60947-5-1 UL 508 EN 60947-4-1 | -20 to 60 ℃ without derating conforming to IEC 60947-4-1 | -60 to 70 ℃ | CSA BV RINA CCC DNV LROS (Lloyds register of shipping) GOST GL ATEX INERIS UL | Green Premium product | Compliant EU RoHS Declaration | Yes | Yes | China RoHS declaration | Product Environmental Profile | End of Life Information | Yes | 18 months | 0...400 Hz | Control circuit: 1.7 N.m - on screw clamp terminals Power circuit: 2.3 N.m - on lugs-ring terminals M4 | TeSys | 690 V AC 0...400 Hz | Power circuit: 600 V conforming to CSA Power circuit: 600 V conforming to UL Power circuit: 690 V conforming to IEC 60947-4-1 | 5 A for signalling circuit | LC1D25 LC1D32 LC1D12 LC1D38 LC1D09 LC1D18 | Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 solid without cable end Power circuit: lugs-ring terminals | 6 kV | TH conforming to IEC 60068 | TeSys LRD | V1 conforming to UL 94 | Red push-button: stop Blue push-button: reset | Plate, with specific accessories Rail, with specific accessories Under contactor | Vibrations: 6 Gn conforming to IEC 60068-2-6 Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7 | Motor protection | Tripping current 130 % of Ir on two phase, the last one at 0 | DC AC | 0.63 to 1 A | 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 | -20 to 60 ℃ | 6 kV at 50 Hz conforming to IEC 60255-5 | 3 A at 120 V AC-15 for signalling circuit 0.22 A at 125 V DC-13 for signalling circuit | 45 mm | REACH Declaration | - | - | - | 14.5 mm |
| LRD06 | Differential thermal overload relay | LRD | 70 mm | 0.124 kg | IP20 conforming to IEC 60529 | IEC 60947-5-1 EN 60947-4-1 CSA C22.2 No 14 ATEX D 94/9/CE EN 60947-5-1 UL 508 IEC 60947-4-1 | -20 to 60 ℃ without derating conforming to IEC 60947-4-1 | -60 to 70 ℃ | CSA BV GOST ATEX INERIS UL DNV RINA LROS (Lloyds register of shipping) GL CCC | Green Premium product | Compliant EU RoHS Declaration | Yes | Yes | China RoHS declaration | Product Environmental Profile | End of Life Information | Yes | 18 months | 0...400 Hz | Control circuit: 1.7 N.m - on screw clamp terminals Power circuit: 1.7 N.m - on screw clamp terminals | TeSys | 690 V AC 0...400 Hz | Power circuit: 600 V conforming to CSA Power circuit: 600 V conforming to UL Power circuit: 690 V conforming to IEC 60947-4-1 | 5 A for signalling circuit | LC1D25 LC1D32 LC1D12 LC1D18 LC1D38 LC1D09 | Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 solid without cable end Power circuit: screw clamp terminals 1 cable(s) 1.5 to 10 mm2 flexible without cable end Power circuit: screw clamp terminals 1 cable(s) 1 to 4 mm2 flexible with cable end Power circuit: screw clamp terminals 1 cable(s) 1 to 6 mm2 solid without cable end | 6 kV | TH conforming to IEC 60068 | TeSys LRD | V1 conforming to UL 94 | Red push-button: stop Blue push-button: reset | Plate, with specific accessories Rail, with specific accessories Under contactor | Vibrations: 6 Gn conforming to IEC 60068-2-6 Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7 | Motor protection | Tripping current 130 % of Ir on two phase, the last one at 0 | DC AC | 1 to 1.6 A | 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 | -20 to 60 ℃ | 6 kV at 50 Hz c onforming to IEC 60255-5 | 3 A at 120 V AC-15 for signalling circuit 0.22 A at 125 V DC-13 for signalling circuit | 45 mm | REACH Declaration | - | - | - | - |
| LRD07 | Differential thermal overload relay | LRD | 70 mm | 0.124 kg | IP20 conforming to IEC 60529 | EN 60947-4-1 IEC 60947-5-1 EN 60947-5-1 IEC 60947-4-1 UL 508 ATEX D 94/9/CE CSA C22.2 No 14 | -20 to 60 ℃ without derating conforming to IEC 60947-4-1 | -60 to 70 ℃ | ATEX INERIS BV DNV CCC UL CSA GOST RINA LROS (Lloyds register of shipping) GL | Green Premium product | Compliant EU RoHS Declaration | Yes | Yes | China RoHS declaration | Product Environmental Profile | End of Life Information | Yes | 18 months | 0...400 Hz | Control circuit: 1.7 N.m - on screw clamp terminals Power circuit: 1.7 N.m - on screw clamp terminals | TeSys | 690 V AC 0...400 Hz | Power circuit: 600 V conforming to CSA Power circuit: 600 V conforming to UL Power circuit: 690 V conforming to IEC 60947-4-1 | 5 A for signalling circuit | LC1D18 LC1D38 LC1D32 LC1D25 LC1D12 LC1D09 | Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 solid without cable end Power circuit: screw clamp terminals 1 cable(s) 1.5 to 10 mm2 flexible without cable end Power circuit: screw clamp terminals 1 cable(s) 1 to 4 mm2 flexible with cable end Power circuit: screw clamp terminals 1 cable(s) 1 to 6 mm2 solid without cable end | 6 kV | TH conforming to IEC 60068 | TeSys LRD | V1 conforming to UL 94 | Red push-button: stop Blue push-button: reset | Plate, with specific accessories Rail, with specific accessories Under contactor | Vibrations: 6 Gn conforming to IEC 60068-2-6 Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7 | Motor protection | Tripping current 130 % of Ir on two phase, the last one at 0 | DC AC | 1.6 to 2.5 A | 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 | -20 to 60 ℃ | 6 kV at 50 Hz conforming to IEC 60255-5 | 3 A at 120 V AC-15 for signalling circuit 0.22 A at 125 V DC-13 for signalling circuit | 45 mm | REACH Declaration | - | - | - | - |
| LRD08 | Differential thermal overload relay | LRD | 70 mm | 0.124 kg | IP20 conforming to IEC 60529 | UL 508 EN 60947-5-1 EN 60947-4-1 IEC 60947-4-1 ATEX D 94/9/CE IEC 60947-5-1 CSA C22.2 No 14 | -20 to 60 ℃ without derating conforming to IEC 60947-4-1 | -60 to 70 ℃ | BV RINA LROS (Lloyds register of shipping) CCC CSA ATEX INERIS GL UL GOST DNV | Green Premium product | Compliant EU RoHS Declaration | Yes | Yes | China RoHS declaration | Product Environmental Profile | End of Life Information | Yes | 18 months | 0...400 Hz | Control circuit: 1.7 N.m - on screw clamp terminals Power circuit: 1.7 N.m - on screw clamp terminals | TeSys | 690 V AC 0...400 Hz | Power circuit: 600 V conforming to CSA Power circuit: 600 V conforming to UL Power circuit: 690 V conforming to IEC 60947-4-1 | 5 A for signalling circuit | LC1D12 LC1D09 LC1D25 LC1D38 LC1D32 LC1D18 | Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 solid without cable end Power circuit: screw clamp terminals 1 cable(s) 1.5 to 10 mm2 flexible without cable end Power circuit: screw clamp terminals 1 cable(s) 1 to 4 mm2 flexible with cable end Power circuit: screw clamp terminals 1 cable(s) 1 to 6 mm2 solid without cable end | 6 kV | TH conforming to IEC 60068 | TeSys LRD | V1 conforming to UL 94 | Red push-button: stop Blue push-button: reset | Plate, with specific accessories Rail, with specific accessories Under contactor | Vibrations: 6 Gn conforming to IEC 60068-2-6 Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7 | Motor protection | Tripping current 130 % of Ir on two phase, the last one at 0 | AC DC | 2.5 to 4 A | 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 | -20 to 60 ℃ | 6 kV at 50 Hz conforming to IEC 60255-5 | 3 A at 120 V AC-15 for signalling circuit 0.22 A at 125 V DC-13 for signalling circuit | 45 mm | REACH Declaration | - | - | - | - |
| LRD12 | Differential thermal overload relay | LRD | 70 mm | 0.124 kg | IP20 conforming to IEC 60529 | IEC 60947-5-1 CSA C22.2 No 14 ATEX D 94/9/CE EN 60947-4-1 UL 508 EN 60947-5-1 IEC 60947-4-1 | -20 to 60 ℃ without derating conforming to IEC 60947-4-1 | -60 to 70 ℃ | LROS (Lloyds register of shipping) GOST DNV ATEX INERIS CCC GL CSA UL BV RINA | Green Premium product | Compliant EU RoHS Declaration | Yes | Yes | China RoHS declaration | Product Environmental Profile | End of Life Information | Yes | 18 months | 0...400 Hz | Control circuit: 1.7 N.m - on screw clamp terminals Power circuit: 1.7 N.m - on screw clamp terminals | TeSys | 690 V AC 0...400 Hz | Power circuit: 600 V conforming to CSA Power circuit: 600 V conforming to UL Power circuit: 690 V conforming to IEC 60947-4-1 | 5 A for signalling circuit | LC1D18 LC1D25 LC1D32 LC1D12 LC1D09 LC1D38 | Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 solid Power circuit: screw clamp terminals 1 cable(s) 1.5 to 10 mm2 flexible without cable end Power circuit: screw clamp terminals 1 cable(s) 1 to 4 mm2 flexible with cable end Power circuit: screw clamp terminals 1 cable(s) 1 to 6 mm2 solid | 6 kV | TH conforming to IEC 60068 | TeSys LRD | V1 conforming to UL 94 | Red push-button: stop Blue push-button: reset | Plate, with specific accessories Rail, with specific accessories Under contactor | Vibrations: 6 Gn conforming to IEC 60068-2-6 Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7 | Motor protection | Tripping current 130 % of Ir on two phase, the last one at 0 | DC AC | 5.5 to 8 A | 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 | -20 to 60 ℃ | 6 kV at 50 Hz conforming to IEC 60255-5 | 1.5 A at 240 V AC-15 for signalling circuit 0.1 A at 250 V DC-13 for signalling circuit | 45 mm | REACH Declaration | - | - | Class 10A | - |
| LRD14 | Differential thermal overload relay | LRD | 70 mm | 0.124 kg | IP20 conforming to IEC 60529 | EN 60947-5-1 ATEX D 94/9/CE UL 508 EN 60947-4-1 IEC 60947-4-1 CSA C22.2 No 14 IEC 60947-5-1 | -20 to 60 ℃ without derating conforming to IEC 60947-4-1 | -60 to 70 ℃ | GOST BV GL UL ATEX INERIS CSA CCC DNV RINA LROS (Lloyds register of shipping) | Green Premium product | Compliant EU RoHS Declaration | Yes | Yes | China RoHS declaration | Product Environmental Profile | End of Life Information | Yes | 18 months | 0...400 Hz | Control circuit: 1.7 N.m - on screw clamp terminals Power circuit: 1.7 N.m - on screw clamp terminals | TeSys | 690 V AC 0...400 Hz | Power circuit: 600 V conforming to CSA Power circuit: 600 V conforming to UL Power circuit: 690 V conforming to IEC 60947-4-1 | 5 A for signalling circuit | LC1D09 LC1D12 LC1D38 LC1D32 LC1D25 LC1D18 | Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 solid without cable end Power circuit: screw clamp terminals 1 cable(s) 1.5 to 10 mm2 flexible without cable end Power circuit: screw clamp terminals 1 cable(s) 1 to 4 mm2 flexible with cable end Power circuit: screw clamp terminals 1 cable(s) 1 to 6 mm2 solid without cable end | 6 kV | TH conforming to IEC 60068 | TeSys LRD | V1 conforming to UL 94 | Red push-button: stop Blue push-button: reset | Plate, with specific accessories Rail, with specific accessories Under contactor | Vibrations: 6 Gn conforming to IEC 60068-2-6 Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7 | Motor protection | Tripping current 130 % of Ir on two phase, the last one at 0 | AC DC | 7 to 10 A | 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 | -20 to 60 ℃ | 6 kV at 50 Hz conforming to IEC 60255-5 | 3 A at 120 V AC-15 for signalling circuit 0.22 A at 125 V DC-13 for signalling circuit | 45 mm | REACH Declaration | - | - | - | - |
| LRD16 | Differential thermal overload relay | LRD | 70 mm | 0.124 kg | IP20 conforming to IEC 60529 | IEC 60947-4-1 UL 508 EN 60947-5-1 ATEX D 94/9/CE EN 60947-4-1 IEC 60947-5-1 CSA C22.2 No 14 | -20 to 60 ℃ without derating conforming to IEC 60947-4-1 | -60 to 70 ℃ | LROS (Lloyds register of shipping) GL DNV CCC UL ATEX INERIS RINA BV GOST CSA | Green Premium product | Compliant EU RoHS Declaration | Yes | Yes | China RoHS declaration | Product Environmental Profile | End of Life Information | Yes | 18 months | 0...400 Hz | Control circuit: 1.7 N.m - on screw clamp terminals Power circuit: 1.7 N.m - on screw clamp terminals | TeSys | 690 V AC 0...400 Hz | Power circuit: 600 V conforming to CSA Power circuit: 600 V conforming to UL Power circuit: 690 V conforming to IEC 60947-4-1 | 5 A for signalling circuit | LC1D18 LC1D38 LC1D32 LC1D12 LC1D25 | Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 solid Power circuit: screw clamp terminals 1 cable(s) 1.5 to 10 mm2 flexible without cable end Power circuit: screw clamp terminals 1 cable(s) 1 to 4 mm2 flexible with cable end Power circuit: screw clamp terminals 1 cable(s) 1 to 6 mm2 solid | 6 kV | TH conforming to IEC 60068 | TeSys LRD | V1 conforming to UL 94 | Red push-button: stop Blue push-button: reset | Plate, with specific accessories Rail, with specific accessories Under contactor | Vibrations: 6 Gn conforming to IEC 60068-2-6 Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7 | Motor protection | Tripping current 130 % of Ir on two phase, the last one at 0 | DC AC | 9 to 13 A | 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 | -20 to 60 ℃ | 6 kV at 50 Hz conforming to IEC 60255-5 | 1.5 A at 240 V AC-15 for signalling circuit 0.1 A at 250 V DC-13 for signalling circuit | 45 mm | REACH Declaration | - | - | Class 10A | - |
| LRD32 | Differential thermal overload relay | LRD | 70 mm | 0.124 kg | IP20 conforming to IEC 60529 | IEC 60947-4-1 UL 508 CSA C22.2 No 14 IEC 60947-5-1 ATEX D 94/9/CE EN 60947-5-1 EN 60947-4-1 | -20 to 60 ℃ without derating conforming to IEC 60947-4-1 | -60 to 70 ℃ | CSA BV UL GL DNV LROS (Lloyds register of shipping) GOST CCC RINA ATEX INERIS | Green Premium product | Compliant EU RoHS Declaration | Yes | Yes | China RoHS declaration | Product Environmental Profile | End of Life Information | Yes | 18 months | 0...400 Hz | Control circuit: 1.7 N.m - on screw clamp terminals Power circuit: 2.5 N.m - on screw clamp terminals | TeSys | 690 V AC 0...400 Hz | Power circuit: 600 V conforming to CSA Power circuit: 600 V conforming to UL Power circuit: 690 V conforming to IEC 60947-4-1 | 5 A for signalling circuit | LC1D32 LC1D25 LC1D38 | Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 solid Power circuit: screw clamp terminals 1 cable(s) 1.5 to 10 mm2 flexible without cable end Power circuit: screw clamp terminals 1 cable(s) 1 to 6 mm2 flexible with cable end Power circuit: screw clamp terminals 1 cable(s) 1.5 to 10 mm2 solid | 6 kV | TH conforming to IEC 60068 | TeSys LRD | V1 conforming to UL 94 | Red push-button: stop Blue push-button: reset | Plate, with specific accessories Rail, with specific accessories Under contactor | Vibrations: 6 Gn conforming to IEC 60068-2-6 Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7 | Motor protection | Tripping current 130 % of Ir on two phase, the last one at 0 | AC DC | 23 to 32 A | 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 | -20 to 60 ℃ | 6 kV at 50 Hz conforming to IEC 60255-5 | 1.5 A at 240 V AC-15 for signalling circuit 0.1 A at 250 V DC-13 for signalling circuit | 45 mm | REACH Declaration | - | - | Class 10A | - |
| LRD325 | Differential thermal overload relay | LRD | 123 mm | 0.375 kg | IP20 conforming to IEC 60529 | EN 60947-5-1 UL 508 CSA C22.2 No 14 IEC 60947-5-1 EN 60947-4-1 IEC 60947-4-1 ATEX D 94/9/CE | -20 to 60 ℃ without derating conforming to IEC 60947-4-1 | -60 to 70 ℃ | CSA RINA CCC LROS (Lloyds register of shipping) UL ATEX INERIS BV GOST DNV GL | Green Premium product | Compliant EU RoHS Declaration | Yes | Yes | China RoHS declaration | Product Environmental Profile | End of Life Information | Yes | 18 months | 0...400 Hz | Control circuit: 1.7 N.m - on screw clamp terminals Power circuit: 5 N.m - on EverLink BTR screw connectors | TeSys | 690 V AC 0...400 Hz | Power circuit: 600 V conforming to CSA Power circuit: 600 V conforming to UL Power circuit: 690 V conforming to IEC 60947-4-1 | 5 A for signalling circuit | LC1D40A LC1D65A LC1D50A | Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 solid without cable end Power circuit: EverLink BTR screw connectors 1 cable(s) 1 to 35 mm2 flexible without cable end Power circuit: EverLink BTR screw connectors 1 cable(s) 1 to 35 mm2 flexible with cable end Power circuit: EverLink BTR screw connectors 1 cable(s) 1 to 35 mm2 solid without cable end | 6 kV | TH conforming to IEC 60068 | TeSys LRD | V1 conforming to UL 94 | Red push-button: stop Blue push-button: reset | Plate, with specific accessories Rail, with specific accessories Under contactor | Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7 Vibrations: 4 gn conforming to IEC 60068-2-6 | Motor protection | Tripping current 130 % of Ir on two phase, the last one at 0 | DC AC | 17 to 25 A | 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 | -20 to 60 ℃ | 6 kV at 50 Hz conforming to IEC 60255-5 | 0.95 A at 380 V AC-15 for signalling circuit 0.06 A at 440 V DC-13 for signalling circuit | 55 mm | - | 70 mm | Yes | - | - |
| LRD332 | Differential thermal overload relay | LRD | 123 mm | 0.375 kg | IP20 conforming to IEC 60529 | ATEX D 94/9/CE IEC 60947-4-1 UL 508 EN 60947-5-1 EN 60947-4-1 IEC 60947-5-1 CSA C22.2 No 14 | -20 to 60 ℃ without derating conforming to IEC 60947-4-1 | -60 to 70 ℃ | GL DNV GOST RINA ATEX INERIS LROS (Lloyds register of shipping) UL BV CSA CCC | Green Premium product | Compliant EU RoHS Declaration | Yes | Yes | China RoHS declaration | Product Environmental Profile | End of Life Information | Yes | 18 months | 0...400 Hz | Control circuit: 1.7 N.m - on screw clamp terminals Power circuit: 5 N.m - on EverLink BTR screw connectors | TeSys | 690 V AC 0...400 Hz | Power circuit: 600 V conforming to CSA Power circuit: 600 V conforming to UL Power circuit: 690 V conforming to IEC 60947-4-1 | 5 A for signalling circuit | LC1D40A LC1D65A LC1D50A | Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 solid without cable end Power circuit: EverLink BTR screw connectors 1 cable(s) 1 to 35 mm2 flexible without cable end Power circuit: EverLink BTR screw connectors 1 cable(s) 1 to 35 mm2 flexible with cable end Power circuit: EverLink BTR screw connectors 1 cable(s) 1 to 35 mm2 solid without cable end | 6 kV | TH conforming to IEC 60068 | TeSys LRD | V1 conforming to UL 94 | Red push-button: stop Blue push-button: reset | Plate, with specific accessories Rail, with specific accessories Under contactor | Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7 Vibrations: 4 gn conforming to IEC 60068-2-6 | Motor protection | Tripping current 130 % of Ir on two phase, the last one at 0 | AC DC | 23 to 32 A | 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 | -20 to 60 ℃ | 6 kV at 50 Hz conforming to IEC 60255-5 | 0.95 A at 380 V AC-15 for signalling circuit 0.06 A at 440 V DC-13 for signalling circuit | 55 mm | - | 123 mm | Yes | - | - |
| LRD3363 | Differential thermal overload relay | LRD | 121 mm | 0.51 kg | IP20 conforming to IEC 60529 | CSA C22.2 No 14 IEC 60947-5-1 IEC 60947-4-1 EN 60947-5-1 UL 508 EN 60947-4-1 ATEX D 94/9/CE | -20 to 60 ℃ without derating conforming to IEC 60947-4-1 | -60 to 70 ℃ | LROS (Lloyds register of shipping) ATEX INERIS CCC BV GL GOST RINA DNV UL CSA | Green Premium product | Compliant EU RoHS Declaration | Yes | Yes | China RoHS declaration | Product Environmental Profile | End of Life Information | Yes | 18 months | 0...400 Hz | Control circuit: 1.7 N.m - on screw clamp terminals Power circuit: 9 N.m - on screw clamp terminals | TeSys | 690 V AC 0...400 Hz | Power circuit: 1000 V conforming to IEC 60947-4-1 Power circuit: 600 V conforming to CSA Power circuit: 600 V conforming to UL | 5 A for signalling circuit | LC1D80 LC1D95 | Power circuit: screw clamp terminals 1 cable(s) 4 to 35 mm2 flexible without cable end Power circuit: screw clamp terminals 1 cable(s) 4 to 35 mm2 flexible with cable end Power circuit: screw clamp terminals 1 cable(s) 4 to 35 mm2 solid without cable end Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 solid without cable end | 6 kV | TH conforming to IEC 60068 | TeSys LRD | V1 conforming to UL 94 | Red push-button: stop Blue push-button: reset | Plate, with specific accessories Rail, with specific accessories Under contactor | Vibrations: 6 Gn conforming to IEC 60068-2-6 Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7 | Motor protection | Tripping current 130 % of Ir on two phase, the last one at 0 | DC AC | 63 to 80 A | 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 | -20 to 60 ℃ | 6 kV at 50 Hz conforming to IEC 60255-5 | 0.72 A at 500 V AC-15 for signalling circuit 0.06 A at 440 V DC-13 for signalling circuit | 75 mm | - | 123 mm | Yes | - | - |
| LRD3365 | Differential thermal overload relay | LRD | 121 mm | 0.51 kg | IP20 conforming to IEC 60529 | IEC 60947-4-1 UL 508 IEC 60947-5-1 ATEX D 94/9/CE CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 | -20 to 60 ℃ without derating conforming to IEC 60947-4-1 | -60 to 70 ℃ | GOST BV DNV LROS (Lloyds register of shipping) RINA CCC ATEX INERIS CSA GL UL | Green Premium product | Compliant EU RoHS Declaration | Yes | Yes | China RoHS declaration | Product Environmental Profile | End of Life Information | Yes | 18 months | 0...400 Hz | Control circuit: 1.7 N.m - on screw clamp terminals Power circuit: 9 N.m - on screw clamp terminals | TeSys | 690 V AC 0...400 Hz | Power circuit: 1000 V conforming to IEC 60947-4-1 Power circuit: 600 V conforming to CSA Power circuit: 600 V conforming to UL | 5 A for signalling circuit | LC1D95 LC1D80 | Power circuit: screw clamp terminals 1 cable(s) 4 to 35 mm2 flexible without cable end Power circuit: screw clamp terminals 1 cable(s) 4 to 35 mm2 flexible with cable end Power circuit: screw clamp terminals 1 cable(s) 4 to 35 mm2 solid without cable end Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 solid without cable end | 6 kV | TH conforming to IEC 60068 | TeSys LRD | V1 conforming to UL 94 | Red push-button: stop Blue push-button: reset | Plate, with specific accessories Rail, with specific accessories Under contactor | Vibrations: 6 Gn conforming to IEC 60068-2-6 Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7 | Motor protection | Tripping current 130 % of Ir on two phase, the last one at 0 | AC DC | 80 to 104 A | 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 | -20 to 60 ℃ | 6 kV at 50 Hz conforming to IEC 60255-5 | 0.72 A at 500 V AC-15 for signalling circuit 0.06 A at 440 V DC-13 for signalling circuit | 75 mm | - | 123 mm | Yes | - | - |
| LRD340 | Differential thermal overload relay | LRD | 123 mm | 0.375 kg | IP20 conforming to IEC 60529 | EN 60947-5-1 ATEX D 94/9/CE UL 508 CSA C22.2 No 14 IEC 60947-5-1 IEC 60947-4-1 EN 60947-4-1 | -20 to 60 ℃ without derating conforming to IEC 60947-4-1 | -60 to 70 ℃ | DNV UL GOST CSA CCC ATEX INERIS LROS (Lloyds register of shipping) BV GL RINA | Green Premium product | Compliant EU RoHS Declaration | Yes | Yes | China RoHS declaration | Product Environmental Profile | End of Life Information | Yes | 18 months | 0...400 Hz | Control circuit: 1.7 N.m - on screw clamp terminals Power circuit: 5 N.m - on EverLink BTR screw connectors | TeSys | 690 V AC 0...400 Hz | Power circuit: 600 V conforming to CSA Power circuit: 600 V conforming to UL Power circuit: 690 V conforming to IEC 60947-4-1 | 5 A for signalling circuit | LC1D65A LC1D50A LC1D40A | Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 solid without cable end Power circuit: EverLink BTR screw connectors 1 cable(s) 1 to 35 mm2 flexible without cable end Power circuit: EverLink BTR screw connectors 1 cable(s) 1 to 35 mm2 flexible with cable end Power circuit: EverLink BTR screw connectors 1 cable(s) 1 to 35 mm2 solid without cable end | 6 kV | TH conforming to IEC 60068 | TeSys LRD | V1 conforming to UL 94 | Red push-button: stop Blue push-button: reset | Plate, with specific accessories Rail, with specific accessories Under contactor | Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7 Vibrations: 4 gn conforming to IEC 60068-2-6 | Motor protection | Tripping current 130 % of Ir on two phase, the last one at 0 | AC DC | 30 to 40 A | 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 | -20 to 60 ℃ | 6 kV at 50 Hz conforming to IEC 60255-5 | 0.95 A at 380 V AC-15 for signalling circuit 0.06 A at 440 V DC-13 for signalling circuit | 55 mm | - | 70 mm | Yes | - | - |
| LRD35 | Differential thermal overload relay | LRD | 70 mm | 0.124 kg | IP20 conforming to IEC 60529 | IEC 60947-4-1 CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 ATEX D 94/9/CE UL 508 IEC 60947-5-1 | -20 to 60 ℃ without derating conforming to IEC 60947-4-1 | -60 to 70 ℃ | GL CCC ATEX INERIS UL GOST CSA DNV LROS (Lloyds register of shipping) BV RINA | Green Premium product | Compliant EU RoHS Declaration | Yes | Yes | China RoHS declaration | Product Environmental Profile | End of Life Information | Yes | 18 months | 0...400 Hz | Control circuit: 1.7 N.m - on screw clamp terminals Power circuit: 2.5 N.m - on screw clamp terminals | TeSys | 690 V AC 0...400 Hz | Power circuit: 600 V conforming to CSA Power circuit: 600 V conforming to UL Power circuit: 690 V conforming to IEC 60947-4-1 | 5 A for signalling circuit | LC1D32 LC1D38 | Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 solid without cable end Power circuit: screw clamp terminals 1 cable(s) 1.5 to 10 mm2 flexible without cable end Power circuit: screw clamp terminals 1 cable(s) 1 to 6 mm2 flexible with cable end Power circuit: screw clamp terminals 1 cable(s) 1.5 to 10 mm2 solid without cable end | 6 kV | TH conforming to IEC 60068 | TeSys LRD | V1 conforming to UL 94 | Red push-button: stop Blue push-button: reset | Plate, with specific accessories Rail, with specific accessories Under contactor | Vibrations: 6 Gn conforming to IEC 60068-2-6 Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7 | Motor protection | Tripping current 130 % of Ir on two phase, the last one at 0 | DC AC | 30 to 38 A | 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 | -20 to 60 ℃ | 6 kV at 50 Hz conforming to IEC 60255-5 | 1.5 A at 240 V AC-15 for signalling circuit 0.1 A at 250 V DC-13 for signalling circuit | 45 mm | REACH Declaration | 70 mm | - | - | - |
| LRD350 | Differential thermal overload relay | LRD | 123 mm | 0.375 kg | IP20 conforming to IEC 60529 | UL 508 CSA C22.2 No 14 IEC 60947-5-1 EN 60947-5-1 ATEX D 94/9/CE IEC 60947-4-1 EN 60947-4-1 | -20 to 60 ℃ without derating conforming to IEC 60947-4-1 | -60 to 70 ℃ | UL GL BV CCC ATEX INERIS RINA DNV GOST CSA LROS (Lloyds register of shipping) | Green Premium product | Compliant EU RoHS Declaration | Yes | Yes | China RoHS declaration | Product Environmental Profile | End of Life Information | Yes | 18 months | 0...400 Hz | Control circuit: 1.7 N.m - on screw clamp terminals Power circuit: 5 N.m - on EverLink BTR screw connectors | TeSys | 690 V AC 0...400 Hz | Power circuit: 600 V conforming to CSA Power circuit: 600 V conforming to UL Power circuit: 690 V conforming to IEC 60947-4-1 | 5 A for signalling circuit | LC1D65A LC1D50A LC1D40A | Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 solid without cable end Power circuit: EverLink BTR screw connectors 1 cable(s) 1 to 35 mm2 flexible without cable end Power circuit: EverLink BTR screw connectors 1 cable(s) 1 to 35 mm2 flexible with cable end Power circuit: EverLink BTR screw connectors 1 cable(s) 1 to 35 mm2 solid without cable end | 6 kV | TH conforming to IEC 60068 | TeSys LRD | V1 conforming to UL 94 | Red push-button: stop Blue push-button: reset | Plate, with specific accessories Rail, with specific accessories Under contactor | Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7 Vibrations: 4 gn conforming to IEC 60068-2-6 | Motor protection | Tripping current 130 % of Ir on two phase, the last one at 0 | DC AC | 37 to 50 A | 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 | -20 to 60 ℃ | 6 kV at 50 Hz conforming to IEC 60255-5 | 0.95 A at 380 V AC-15 for signalling circuit 0.06 A at 440 V DC-13 for signalling circuit | 55 mm | - | 70 mm | Yes | - | - |
| LRD365 | Differential thermal overload relay | LRD | 123 mm | 0.375 kg | IP20 conforming to IEC 60529 | IEC 60947-4-1 CSA C22.2 No 14 EN 60947-4-1 ATEX D 94/9/CE EN 60947-5-1 IEC 60947-5-1 UL 508 | -20 to 60 ℃ without derating conforming to IEC 60947-4-1 | -60 to 70 ℃ | RINA GOST LROS (Lloyds register of shipping) ATEX INERIS UL BV DNV CSA CCC GL | Green Premium product | Compliant EU RoHS Declaration | Yes | Yes | China RoHS declaration | Product Environmental Profile | End of Life Information | Yes | 18 months | 0...400 Hz | Control circuit: 1.7 N.m - on screw clamp terminals Power circuit: 5 N.m - on EverLink BTR screw connectors | TeSys | 690 V AC 0...400 Hz | Power circuit: 600 V conforming to CSA Power circuit: 600 V conforming to UL Power circuit: 690 V conforming to IEC 60947-4-1 | 5 A for signalling circuit | LC1D65A LC1D50A | Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 solid without cable end Power circuit: EverLink BTR screw connectors 1 cable(s) 1 to 35 mm2 flexible without cable end Power circuit: EverLink BTR screw connectors 1 cable(s) 1 to 35 mm2 flexible with cable end Power circuit: EverLink BTR screw connectors 1 cable(s) 1 to 35 mm2 solid without cable end | 6 kV | TH conforming to IEC 60068 | TeSys LRD | V1 conforming to UL 94 | Red push-button: stop Blue push-button: reset | Plate, with specific accessories Rail, with specific accessories Under contactor | Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7 Vibrations: 4 gn conforming to IEC 60068-2-6 | Motor protection | Tripping current 130 % of Ir on two phase, the last one at 0 | DC AC | 48 to 65 A | 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 | -20 to 60 ℃ | 6 kV at 50 Hz conforming to IEC 60255-5 | 0.95 A at 380 V AC-15 for signalling circuit 0.06 A at 440 V DC-13 for signalling circuit | 55 mm | REACH Declaration | 70 mm | Yes | - | - |
| LRD4365 | Differential thermal overload relay | LRD | 132 mm | 0.9 kg | IP20 conforming to IEC 60529 | EN 60947-5-1 EN 60947-4-1 CSA C22.2 No 14 IEC 60947-4-1 ATEX D 94/9/CE UL 508 IEC 60947-5-1 | -20 to 60 ℃ without derating conforming to IEC 60947-4-1 | -60 to 70 ℃ | GL LROS (Lloyds register of shipping) RINA GOST CCC ATEX INERIS BV CSA UL DNV | Green Premium product | Compliant EU RoHS Declaration | Yes | Yes | China RoHS declaration | Product Environmental Profile | End of Life Information | Yes | 18 months | 0...400 Hz | Control circuit: 1.7 N.m - on screw clamp terminals Power circuit: 9 N.m - on screw clamp terminals | TeSys | 690 V AC 0...400 Hz | Power circuit: 1000 V conforming to IEC 60947-4-1 Power circuit: 600 V conforming to CSA Power circuit: 600 V conforming to UL | 5 A for signalling circuit | LC1D115 LC1D150 | Power circuit: screw clamp terminals 1 cable(s) 4 to 35 mm2 flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 1 to 2.5 mm2 solid without cable end Power circuit: screw clamp terminals 1 cable(s) 4 to 50 mm2 flexible without cable end Power circuit: screw clamp terminals 1 cable(s) 4 to 50 mm2 solid without cable end | 6 kV | TH conforming to IEC 60068 | TeSys LRD | V1 conforming to UL 94 | Red push-button: stop Blue push-button: reset | Plate, with specific accessories Rail, with specific accessories Under contactor | Vibrations: 6 Gn conforming to IEC 60068-2-6 Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7 | Motor protection | Tripping current 130 % of Ir on two phase, the last one at 0 | AC DC | 80 to 104 A | 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 | -20 to 60 ℃ | 6 kV at 50 Hz conforming to IEC 60255-5 | 0.06 A at 440 V DC-13 for signalling circuit 0.12 A at 600 V AC-15 for signalling circuit | - | - | - | Yes | - | - |
