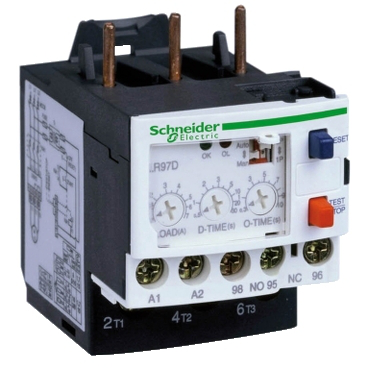

Electronic Overload Relay For Motor TeSys
Brand :
Schneider Electric
Caution
Product Description
Overload Relay For Motor TeSys
[Feature]
● Product or component type : over current relay
● Product compatibility : LC1D25...D38
● Relay application : Sensitivity to phase failure and Locked rotor
● Rated Supply Voltage : 200...240 VAC
● Surge withstand : 6 kV conforming to IEC 61000-4-5
● Ambient air temperature for operation : -25 to 60 °C conforming to IEC 60947-4-1
● Vibration resistance : 4 gn conforming to IEC 60068-2-6
Electronic Overload Relay For Motor TeSys
[Feature]
● Product or component type : overcurrent relay
● Product compatibility : LC1D25...D38
● Relay application : Sensitivity to phase failure and Locked rotor
● Rated Supply Voltage : 200...240 VAC
● Surge withstand : 6 kV conforming to IEC 61000-4-5
● Ambient air temperature for operation : -25 to 60 °C conforming to IEC 60947-4-1
●IP degree of protection : IP20 conforming to IEC 60529
| Product Code | Product or component type | Device short name | [Us] rated supply voltage | Vibration resistance | Shock resistance | Width | Height | Depth | Net weight | IP degree of protection | Standards | Ambient air temperature for operation | Ambient air temperature for storage | Product certifications | EU RoHS Directive | Mercury free | RoHS exemption information | China RoHS Regulation | Circularity Profile | WEEE | Operating altitude | Resistance to electrostatic discharge | REACH Regulation | Warranty | Network frequency | Tightening torque | Protection type | Range | [Ue] rated operational voltage | [Ui] rated insulation voltage | [Ith] conventional free air thermal current | Product compatibility | Contacts type and composition | Connections - terminals | [Uimp] rated impulse withstand voltage | Protective treatment | Quantity per set | Product name | Surge withstand | Resistance to fast transients | Resistance to radiated fields | Mounting support | Fire resistance | Relay application | Phase failure sensitivity | Network type | Signalling function | Thermal protection adjustment range | Tripping threshold | Dielectric strength | Maximum power | Reset | Time range | Disturbance radiated/conducted |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LR97D015M7 | Electronic overcurrent relay | LR97 | 200...240 V AC | 4 gn conforming to IEC 60068-2-6 | 15 gn 11 ms conforming to IEC 60068-2-7 | 45 mm | 67.5 mm | 67.5 mm | 0.172 kg | IP20 conforming to IEC 60529 | IEC 60255-6 IEC 60947 | -25 to 60 ℃ conforming to IEC 60947-4-1 | -30 to 80 ℃ | CSA UL GOST | Compliant EU RoHS Declaration | Yes | Yes | China RoHS declaration | End of Life Information | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins | 2000 m | 6 kV in indirect mode 8 kV in air | REACH Declaration | 18 months | 50...60 Hz | Control circuit: 0.6...1.2 N.m on lug-clamp Power circuit: 2 N.m on cable | BS fuse 3 A - for control circuit GB2 circuit breaker 3 A - for control circuit GG fuse 3 A - for control circuit | TeSys | 600 V AC 50/60 Hz for power circuit conforming to CSA 600 V AC 50/60 Hz for power circuit conforming to UL 690 V AC 50/60 Hz for power circuit conforming to IEC 60947-4-1 | Power circuit: 600 V conforming to CSA Power circuit: 600 V conforming to UL Power circuit: 690 V conforming to IEC 60947-4-1 | 3 A for control circuit | LC1D09...D38 | 1 C/O | Control circuit: cable 1 x 1 to 25 mm2 flexible with cable end Control circuit: cable 1 x 1 to 25 mm2 flexible without cable end Power circuit: cable 1 x 1 to 4 mm2 flexible with cable end Power circuit: cable 1 x 1.5 to 10 mm2 flexible without cable end Power circuit: lug-clamp 1 x 1 to 4 mm2 flexible with cable end Power circuit: lug-clamp 1 x 1.5 to 10 mm2 flexible without cable end Control circuit: cable 2 x 1 to 25 mm2 flexible with cable end Control circuit: cable 2 x 1 to 25 mm2 flexible without cable end Control circuit: lug-clamp 1 x 1 to 25 mm2 flexible with cable end Control circuit: lug-clamp 1 x 1 to 25 mm2 flexible without cable end Control circuit: lug-clamp 2 x 1 to 25 mm2 flexible with cable end Control circuit: lug-clamp 2 x 1 to 25 mm2 flexible without cable end | 6 kV | TH conforming to IEC 60068 | Set of 10 | TeSys D | 6 kV conforming to IEC 61000-4-5 | 2 kV | 10 V/m level 3 | Direct on contactor Rail | 850 ℃ conforming to IEC 60695-2-1 | Sensitivity to phase failure Overload Imax > Isetting Locked rotor, mechanical jamming I > 3 x Isetting | < 3 s | AC | 2 LEDs | 0.3 to 1.5 A | 0.3...1.3 A | 2 V 50 Hz conforming to IEC 60255-5 | 28 W at 110 V DC conforming to IEC 60947 28 W at 220 V DC conforming to IEC 60947 55 W at 24 V DC conforming to IEC 60947 55 W at 48 V DC conforming to IEC 60947 140 VA at 48 V AC conforming to IEC 60947 360 VA at 110 V AC conforming to IEC 60947 360 VA at 220 V AC conforming to IEC 60947 70 VA at 24 V AC conforming to IEC 60947 | Automatic reset 120 s fixed Electrical by interruption of power supply for minimum 0.1 s Manual reset | 0.2...10 s - O-time knob 0.3...10 s - O-time knob 0.5..30 s - D-time knob | 10 V conforming to EN 61000-4-6 Class A conforming to EN 55011 |
| LR97D38M7 | Electronic overcurrent relay | LR97 | 200...240 V AC | 4 gn conforming to IEC 60068-2-6 | 15 gn 11 ms conforming to IEC 60068-2-7 | 45 mm | 67.5 mm | 67.5 mm | 0.172 kg | IP20 conforming to IEC 60529 | IEC 60947 IEC 60255-6 | -25 to 60 ℃ conforming to IEC 60947-4-1 | -30 to 80 ℃ | CSA GOST UL | Compliant EU RoHS Declaration | Yes | Yes | China RoHS declaration | End of Life Information | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins | 2000 m | 6 kV in indirect mode 8 kV in air | REACH Declaration | 18 months | 50...60 Hz | Control circuit: 0.6...1.2 N.m on lug-clamp Power circuit: 2 N.m on cable | BS fuse 3 A - for control circuit GB2 circuit breaker 3 A - for control circuit GG fuse 3 A - for control circuit | TeSys | 600 V AC 50/60 Hz for power circuit conforming to CSA 600 V AC 50/60 Hz for power circuit conforming to UL 690 V AC 50/60 Hz for power circuit conforming to IEC 60947-4-1 | Power circuit: 600 V conforming to CSA Power circuit: 600 V conforming to UL Power circuit: 690 V conforming to IEC 60947-4-1 | 3 A for control circuit | LC1D25...D38 | 1 C/O | Control circuit: cable 1 x 1 to 25 mm2 flexible with cable end Control circuit: cable 1 x 1 to 25 mm2 flexible without cable end Control circuit: cable 2 x 1 to 25 mm2 flexible without cable end Control circuit: lug-clamp 1 x 1 to 25 mm2 flexible with cable end Control circuit: lug-clamp 1 x 1 to 25 mm2 flexible without cable end Control circuit: lug-clamp 2 x 1 to 25 mm2 flexible with cable end Control circuit: lug-clamp 2 x 1 to 25 mm2 flexible without cable end Control circuit: cable 2 x 1 to 25 mm2 Power circuit: cable 1 x 1 to 6 mm2 flexible without cable end Power circuit: cable 1 x 2.5 to 10 mm2 flexible with cable end Power circuit: lug-clamp 1 x 1 to 6 mm2 flexible without cable end Power circuit: lug-clamp 1 x 2.5 to 10 mm2 flexible with cable end | 6 kV | TH conforming to IEC 60068 | Set of 10 | TeSys D | 6 kV conforming to IEC 61000-4-5 | 2 kV | 10 V/m level 3 | Direct on contactor Rail | 850 ℃ conforming to IEC 60695-2-1 | Overload Imax > Isetting Sensitivity to phase failure Locked rotor, mechanical jamming I > 3 x Isetting | < 3 s | AC | 2 LEDs | 20 to 38 A | 20...34 A | 2 V 50 Hz conforming to IEC 60255-5 | 28 W at 110 V DC conforming to IEC 60947 28 W at 220 V DC conforming to IEC 60947 55 W at 24 V DC conforming to IEC 60947 55 W at 48 V DC conforming to IEC 60947 140 VA at 48 V AC conforming to IEC 60947 360 VA at 110 V AC conforming to IEC 60947 360 VA at 220 V AC conforming to IEC 60947 70 VA at 24 V AC conforming to IEC 60947 | Automatic reset 120 s fixed Electrical by interruption of power supply for minimum 0.1 s Manual reset | 0.2...10 s - O-time knob 0.3...10 s - O-time knob 0.5..30 s - D-time knob | 10 V conforming to EN 61000-4-6 Class A conforming to EN 55011 |
