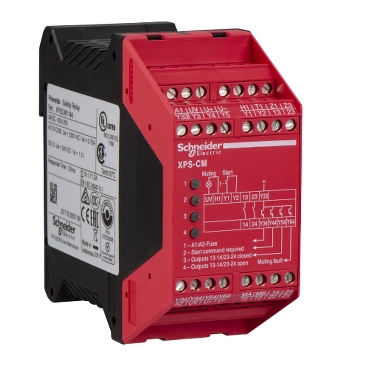

Module XPS-CM Single-Beam Photo-Electric Sensors
Brand :
Schneider Electric
Caution
Product Description
Module XPS-CM, Single-Beam Photo-Electric Sensors, 24 V DC
| Product Code | Range of product | Product or component type | [Us] rated supply voltage | Number of inputs | IP degree of protection | Ambient air temperature for operation | Ambient air temperature for storage | Sustainable offer status | EU RoHS Directive | Mercury free | RoHS exemption information | China RoHS Regulation | Environmental Disclosure | Circularity Profile | WEEE | Maximum power consumption in W | Local signalling | REACH Regulation | Warranty | Protection type | [Ui] rated insulation voltage | Connections - terminals | [Uimp] rated impulse withstand voltage | Input voltage | Breaking capacity | Safety level | Safety reliability data | Sensor power supply | Associated fuse rating | Function of module | Safety module name | Safety module application | Output type | Number of additional circuits | Synchronisation time between inputs | Maximum line resistance | Output thermal current | Minimum output current | Minimum output voltage | Maximum response time on input open | Input compatibility | Maximum supply current for sensors | Input current | Muting maximum duration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XPSCM1144 | Preventa Safety detection | Safety module | 24 V DC - 20...20 % | 2 (terminal(s) MA, MB) for muting function 4 (terminal(s) Z1, Z2, Z3, Z4) for sensor | IP20 (terminals) conforming to IEC 60529 IP40 (enclosure) conforming to IEC 60529 | -10 to 55 °C | -25 to 85 °C | Green Premium product | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | Yes | Yes | China RoHS declaration | Product Environmental Profile | End of Life Information | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins | 15 W | 1 LED, function electronic internal fuse status 1 LED, function restarting 1 LED, function safety outputs closed 1 LED, function safety outputs open 1 incandescent lamp, function muting power consumption: 4 to 6.5W | REACH Declaration | 18 months | Electronic internal fuse | 300 V (pollution degree 2) conforming to DIN VDE 0110 parts 1 and 2 300 V (pollution degree 2) conforming to EN/IEC 60947-5-1 | Captive screw clamp terminals, 1 x 0.14...1 x 2.5 mm2 solid or flexible without cable end Captive screw clamp terminals, 1 x 0.25...1 x 1.5 mm2 flexible with cable end, with bezel Captive screw clamp terminals, 1 x 0.25...1 x 2.5 mm2 flexible with cable end, without bezel Captive screw clamp terminals, 2 x 0.14...2 x 0.75 mm2 solid or flexible without cable end Captive screw clamp terminals, 2 x 0.25...2 x 1 mm2 flexible with cable end, without bezel Captive screw clamp terminals, 2 x 0.5...2 x 1.5 mm2 flexible with cable end, with double bezel | 4 kV overvoltage category III conforming to DIN VDE 0110 parts 1 and 2 4 kV overvoltage category III conforming to EN/IEC 60947-5-1 | 24 V DC for sensor 24 V DC (terminal(s) U+, U-) for muting function | 20 mA at 24 V for solid state output 1.5 A at 24 V (DC-13) time constant: 50 ms for relay output | Can REACH category 2 with the appropriate control system and correctly wired conforming to EN/ISO 13849-1 Can REACH SILCL 1 with the appropriate control system and correctly wired conforming to EN/IEC 62061 Can REACH PL = c with the appropriate control system and correctly wired conforming to EN/ISO 13849-1 | MTTFd = 16.6 years conforming to EN/ISO 13849-1 DC = 95.5 % conforming to EN/ISO 13849-1 PFH = 3.12E-7 1/h conforming to EN/IEC 61508 PFHd = 3.12E-7 1/h conforming to EN/IEC 62061 | U+, U-: 24 V DC | 4 A gG for relay output conforming to DIN VDE 0660 part 200 4 A gG for relay output conforming to EN/IEC 60947-5-1 6 A fast blow for relay output conforming to DIN VDE 0660 part 200 6 A fast blow for relay output conforming to EN/IEC 60947-5-1 | Built-in muting | XPSCM | For monitoring of single beam photo-electric sensor | Relay 2 NO (13-14, 23-24), volt-free | 0 | 3 s (+/- 20 %) for the activation of the MA/MB muting signal | 10 Ohm for sensor power supply | 5.6 A per relay 11 A maximum | 10 mA for relay output | 17 V for relay output | 25 ms | XC limit switch for muting function XU2M18PP340... for muting function XU2S18PP340... (infrared) for sensor XU9M18PP340... for muting function | 200 mA | 200 mA for muting function | 60 s (- 10...30 %) |
