Stainless Steel Roller Catch C-1051
Brand :
TAKIGEN
Caution
Product Description
A stainless steel roller snap type catch.
[Features]
· Stainless steel construction with excellent corrosion-resistance (C-1051).
· Roller is made from polyethylene for smooth operation.
· The main body is made from stainless steel with excellent corrosion-resistance. The roller is made from resin for smooth operation.
[Applications]
· Used in kitchen doors, furniture.
Roller Made From Polyethylene For Smooth Insertion/Removal

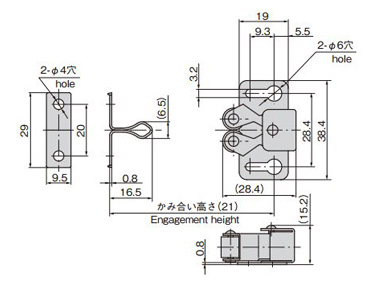

C-1051-1 dimensional drawing

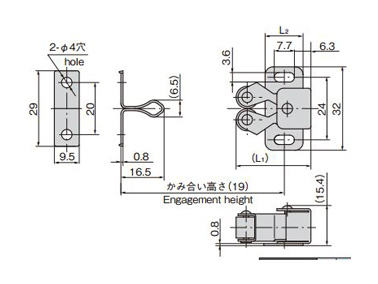

C-1051-2 dimensional drawing

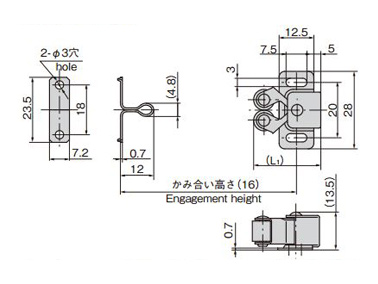

C-1051-3 dimensional drawing
| Product No. | Materials | Surface Finish Finish | (L1) | L2 | Removal Load (Reference) N | Product Mass (g) |
|---|---|---|---|---|---|---|
| C-1051-1 | Main body: cold rolled stainless-steel plate (SUS430) Roller: polyethylene (PE) Main body: cold rolled stainless steel plate (SUS430) Roller: polyethylene (PE) | Main body: mirror surface buffing Main body: mirror surface buffing | 29 | 15 | ||
| C-1051-2 | 28.6 | 14.5 | 27 | 10 | ||
| C-1051-3 | 24 | 10.8 | 9.3 |
