Extension Bolts (BJ610 to 611)
Brand :
IMAO CORPORATION
Caution
Product Description
Adjuster-related parts used for extending bolts, etc.
[Features]
· 2 types of product material are available: steel and stainless steel.
· A comprehensive product lineup, from M6 to M20.
[Applications]
· As extension parts for bolts, etc.
Tie-Rod Bolt Outline Drawing And Dimensions

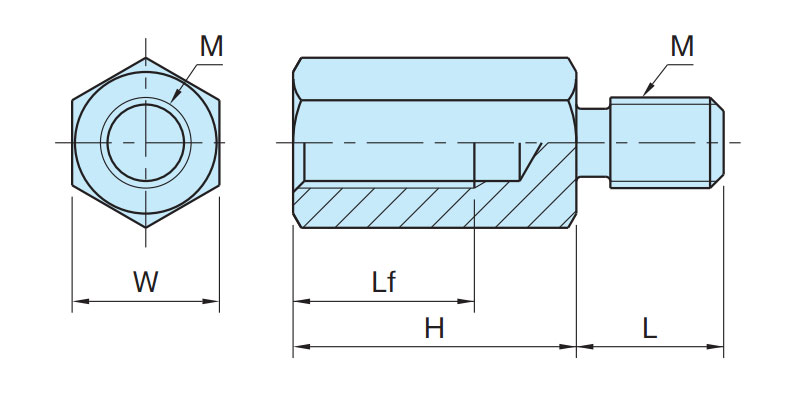

Tie-rod bolt outline drawing
| Steel | SUS | M | H | L | Lf | W | Mass (g) |
|---|---|---|---|---|---|---|---|
| Part Number | Part Number | ||||||
| BJ610-06020 | BJ610-06020-SUS | M6 × 1 | 20 | 10 | 12 | 10 | 13 |
| BJ610-06025 | BJ610-06025-SUS | 25 | 17 | ||||
| BJ610-06032 | BJ610-06032-SUS | 32 | 20 | ||||
| BJ610-08025 | - | M8 × 1.25 | 25 | 13 | 16 | 13 | 25 |
| BJ610-08032 | - | 32 | 35 | ||||
| BJ610-08040 | - | 40 | 45 | ||||
| - | BJ610-08025-SUS | M8 × 1.25 | 25 | 13 | 16 | 14 | 32 |
| - | BJ610-08032-SUS | 32 | 40 | ||||
| - | BJ610-08040-SUS | 40 | 50 | ||||
| BJ610-10032 | BJ610-10032-SUS | M10 × 1.5 | 32 | 16 | 20 | 17 | 60 |
| BJ610-10050 | BJ610-10050-SUS | 50 | 95 | ||||
| BJ610-10075 | BJ610-10075-SUS | 75 | 145 | ||||
| BJ610-12032 | BJ610-12032-SUS | M12 × 1.75 | 32 | 18 | 20 | 22 | 95 |
| BJ610-12050 | BJ610-12050-SUS | 50 | 165 | ||||
| BJ610-12075 | BJ610-12075-SUS | 75 | 250 | ||||
| BJ610-16032 | - | M16 × 2 | 32 | 25 | 20 | 27 | 150 |
| BJ610-16050 | - | 50 | 30 | 250 | |||
| BJ610-16075 | - | 75 | 370 | ||||
| BJ610-20050 | - | M20 × 2.5 | 50 | 30 | 30 | 30 | 290 |
| BJ610-20075 | - | 75 | 40 | 430 | |||
| BJ610-20100 | - | 100 | 580 |
Use Examples/Methods

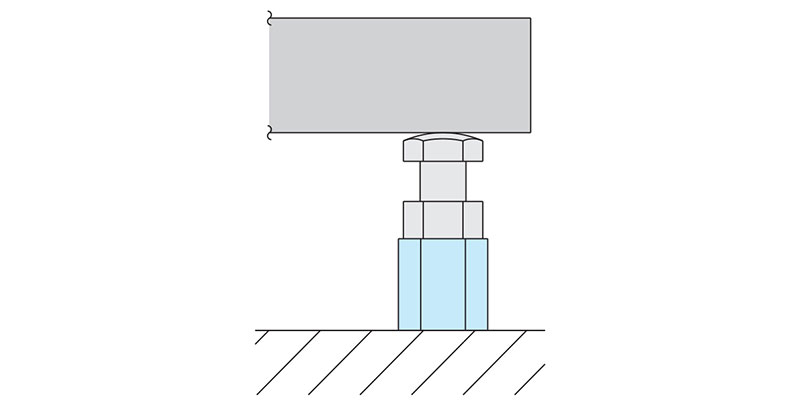

Used for extending bolts, etc.
