Coupling Nut (BJ744)
Brand :
IMAO CORPORATION
Caution
Product Description
Parts for bolt connection and length extension.
[Features]
· 2 types of material available: steel and stainless steel.
· Screws come in sizes M6 to M24 (M6 to M12 for stainless steel).
[Applications]
· Can be used as components for processing clamps.
· Suitable for extending bolts, etc.
Coupling Nut (BJ744)

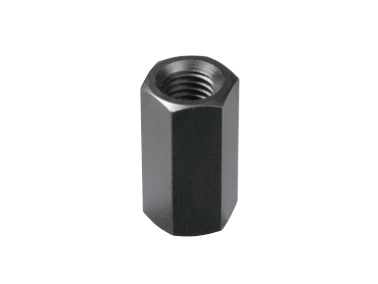

Steel

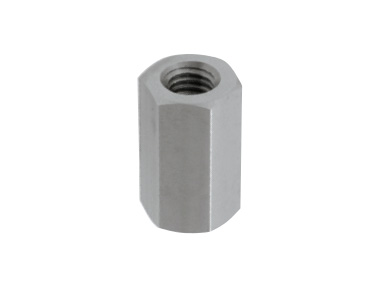

SUS

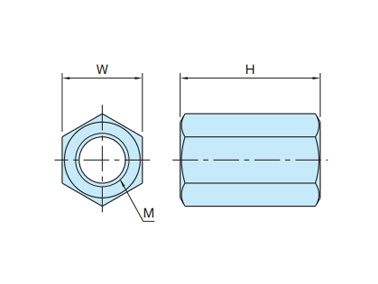

Dimensional drawing
| Steel | SUS | M | H | W | Mass (g) |
|---|---|---|---|---|---|
| Part Number | Part Number | ||||
| BJ744-06001 | BJ744-06001-SUS | M6 × 1 | 18 | 10 | 8 |
| BJ744-08001 | - | M8 × 1.25 | 24 | 13 | 30 |
| - | BJ744-08001-SUS | 14 | |||
| BJ744-10001 | BJ744-10001-SUS | M10 × 1.5 | 30 | 17 | 50 |
| BJ744-12001 | BJ744-12001-SUS | M12 × 1.75 | 36 | 19 | 60 |
| BJ744-16001 | - | M16 × 2 | 48 | 24 | 90 |
| BJ744-20001 | - | M20 × 2.5 | 60 | 30 | 130 |
| BJ744-24001 | - | M24 × 3 | 72 | 36 | 375 |

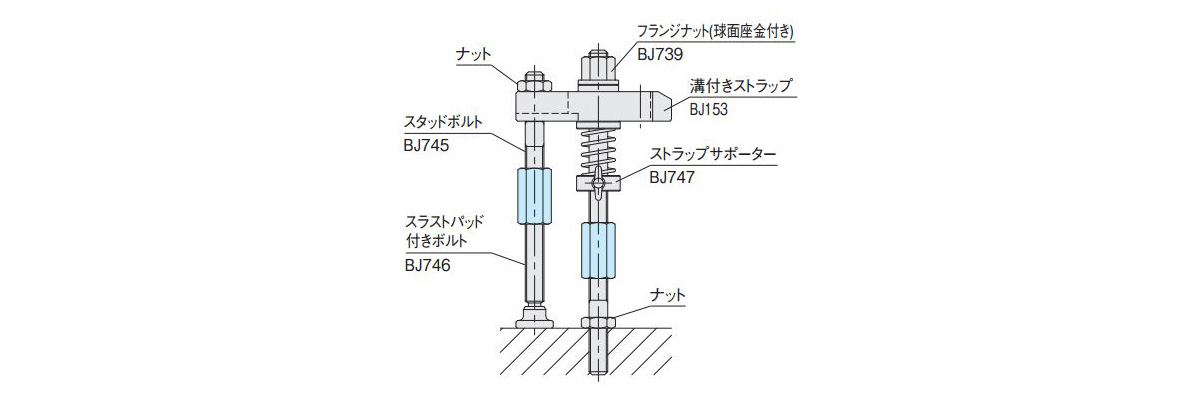

Use Examples/Methods
Usage
Material And Finish
BJ744
- S45C
- Quenching and tempering
- Black oxide coating
- HRC33 to 39
BJ744-SUS
- SUS304
