N-series Aluminum Frame - Series 6, Square, 30 × 30 mm, 4-Side Slots
Brand :
MISUMI
Caution
- Product color and packaging have been changed. For more details please check >> CLICK here
- Additional freight and delivery charge are added to items longer than 2000.5mm
- Due to Air shipment restrictions, the maximum allowable cargo length is not over than 2,600 mm. If the item exceeds 2600mm, the lead time will be approximately 1.5 months. Please contact MISUMI for more information.
- Download Free! >> Economy Series Catalog (TH-EN-FY25) CLICK here
Product Description
Aluminum Frame Series 6 /Slot width 8/ 30x30 mm.
Aluminum Frame is a product used to build machine structures, available in various sizes,cross section shapes and with different types of surfaces treatment to choose from.
[Feature]
● Shape : Square.
● Slot width : 8 mm. /1 slot
● Cross-section : 30 mm. X 30 mm.
● Overall length :The size is configurable between 50 to 4000 mm, and the minimum length can be increased by increments 0.5 mm.
● Material : Aluminum grade A6063S-T5 and A6063S-T6 Equivalent
● Surface treatment: Clear/ Black Anodize
[Application]
Used for automatic machine structures in various industries such as automotive industry, electronics industry, etc.
Cut surface and alteration sections are not surface treated.

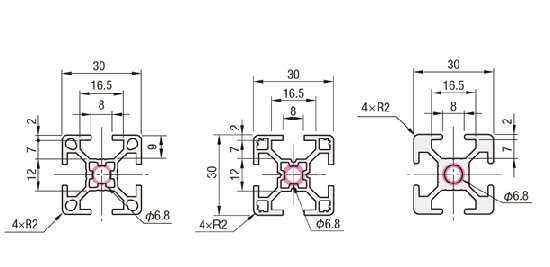

NFSL (Lightweight Standard Type) NEFS (Standard Type) GNFS (High Rigidity Type)
*No tolerance regulation is specified for L dimension of fixed length extrusions
| 6 Series |
 |
Slot Details
(Common to
All Types)
Slot Bottom Details
(HFS, CAF Type)
(GFS Type)
(EFS Type)
(NEFS, NEFSB, NFSL · GNFS Type)
T Slot Dimension
Enlarged View of A
Enlarged View of A
Enlarged View of A
Enlarged View of A
■ Series 6:
The aluminum extrusion with 8±0.36 mm slot width and applicable to M6 bolts.
[ ! ] Cut surface and alteration sections are not surface treated.
[ ! ] When end tapping is specified, the part with red circles will be machined.
The aluminum extrusion with 8±0.36 mm slot width and applicable to M6 bolts.
[ ! ] Cut surface and alteration sections are not surface treated.
[ ! ] When end tapping is specified, the part with red circles will be machined.
Type Overview
| Standard Aluminum Extrusions | Lightweight Aluminum Extrusions | High Rigidity Aluminum Extrusions | ||||||
| HFS Type | EFS Type | NFS (NEFS) Type | HFSL Type | NFSL Type | GFS Type | GNFS Type | ||
| Cross Section Photo |  |  |  |  |  |  |  | |
| Material | A6005CSS-T5 | A6005CSS-T5 | A6063S-T5 | A6005CSS-T5 | A6063S-T5 | A6061SS-T6 Equivalent | A6063S-T6 Equivalent | |
| Features | Standard cross section shape. | Have rigidity equivalent to HFS Series yet lighter and more economical. | Significant price reduction has been achieved by material change. Strength (*) is the same as that of HFS series and EFS Series. | Extrusion designed by focusing on light weight and economical price. Suitable for use when light weight and economical price are given priority over strength. | Further price reduction has been achieved by material change of HFSL. Strength (*) is the same as that of HFSL series. | Extrusion with thickness designed by focusing on rigidity. Suitable for enclosures that receive high load. | Significant price reduction has been achieved by changing the load capacity and the material of the high rigidity aluminum extrusions.Strength (*) is the same as that of GFS series. | |
| Surface Treatment | Clear Anodize Black Anodize Clear Coating Baked Paint (Yellow) | Clear Anodize Black Anodize | Clear Anodize Black Anodize | Clear Anodize Black Anodize | Clear Anodize | Clear Anodize | Clear Anodize | |
| Applicable Series | 5 | ○ | － | ○ | － | － | － | － |
| 6 | ○ | ○ | ○ | ○ | ○ | |||
| 8 | ||||||||
| 8-45 | ||||||||
Part Number Display Method
| Part Number | - | L | |
| NEFS6-3030 KNEFS6-3030 | - - | 800 4000 | (Configurable length extrusion, L dimension can be specified from 50 to 4000 mm in 0.5 mm increments) (Fixed length extrusion, L dimension is a fixed length of 4000 mm and cannot be changed) |
Configurable Length Extrusion Specification Table (Alterations: Available)
| Type | Material | Surface Treatment | Part Number | L 0.5 mm Increments | Mass kg/m | Sectional Area mm2 | Cross Sectional Moment of Inertia mm4 | |
| (Tolerance ±0.5 mm) | ℓx | ℓy | ||||||
| GNFS | A6063S-T6 Equivalent | Clear Anodize | GNFS6-3030 | 50 to 4000 | 1.02 | 377 | 3.47 × 104 | 3.47 × 104 |
| NEFS | A6063S-T5 | Clear Anodize | NEFS6-3030 | 50 to 4000 | 0.8 | 296 | 2.85 × 104 | 2.85 × 104 |
| NEFS | A6063S-T5 | Black Anodize | NEFSB6-3030 | 50 to 4000 | 0.8 | 296 | 2.85 × 104 | 2.85 × 104 |
| NFSL | A6063S-T5 | Clear Anodize | NFSL6-3030 | 50 to 4000 | 0.76 | 280 | 2.68 × 104 | 2.68 × 104 |
Fixed Length Extrusion (Effective Length 4,000) Specification Table (Alteration: Unavailable)
[ ! ] Part numbers beginning with the character "K" indicate Fixed Length Extrusion.
[ ! ]*1 An effective Length of 4,000 mm indicates the extrusion with 4,000 mm or more effective length.
The actual length with extra lengths on ends is more than 4,000 mm (several tens of mm longer).
Fixed Length Extrusions need to be cut by users thus the exact length cannot be specified.
| Type | Material | Surface Treatment | Part Number | L mm | Sectional Area mm2 | Cross Sectional Moment of Inertia mm4 | |
| (No tolerance regulation)*1 | ℓx | ℓy | |||||
| GNFS | A6063S-T6 Equivalent | Clear Anodize | KGNFS6-3030 | 4000 | 377 | 3.47 × 104 | 3.47 × 104 |
| NEFS | A6063S-T5 | Clear Anodize | KNEFS6-3030 | 4000 | 296 | 2.85 × 104 | 2.85 × 104 |
| NEFS | A6063S-T5 | Black Anodize | KNEFSB6-3030 | 4000 | 296 | 2.85 × 104 | 2.85 × 104 |
| NFSL | A6063S-T5 | Clear Anodize | KNFSL6-3030 | 4000 | 280 | 2.68 × 104 | 2.68 × 104 |
The actual length with extra lengths on ends is more than 4,000 mm (several tens of mm longer).
Fixed Length Extrusions need to be cut by users thus the exact length cannot be specified.
[ ! ] Recommended heat resistance temperature: up to 70°C. Use with the temperature of above 100°C will cause bending due to the load.
However, for temporary high temperatures such as water vapor, up to 100°C is acceptable.
Color Image
Clear Anodize | Clear Coating (Gloss) | Black Anodize | |
End Face Photo |  |  |  |
[ ! ] Both ends are not anodized or painted.
[ ! ] Clear coating is applied over clear anodize. The surface is glossy.
[ ! ] No color number or color standard is provided for black anodize and clear anodize.
Features
Series 6 Applications
Standard Aluminum Extrusions for various use such as medium coverings, small equipment bases, conveyor frames, etc.
Can be used as you desire with wide variety of products.
Usable in combination with different slot width extrusions.
Extrusions with different slot width can be combined when integrating frames and coverings.
Series 5, Series 6, Series 8 Slot Width Mixed Extrusions and Assembly Brackets for Different Extrusion Sizes are available.
Utilize these components to assemble an aluminum extrusion as you desire.
Selection Support Information
■Extrusion Connection Method
Extrusions can be connected in the following two main connection methods.
Extrusions can be connected in the following two main connection methods.
Bracket | Blind Joint | ||
Example of Connection |  |  | |
Characteristics | · Connect outside the extrusion · Can be moved to any position · Inferior in appearance | · Connect inside the extrusion · Superior in appearance · Machining is required on extrusions |
■ Tapping on Ends (6 Series □30)
Center part
Center part
Size/Position | Left Side | Right Side | Both Sides | Cross Section View | |
M8 Depth 24 | LTP | RTP | TPW | ||
M5 Depth 10 (Heli-Coil Inserted) | LHP | RHP | HPW | ||
Tap Position |  |  |  |  |
Corner Part (Standard types such as HFSF only.)
Size/Position | Left Side | Right Side | Both Sides | Cross Section View |
M5 Depth 10 | LSP | RSP | SPW | |
Tap Position |  |  |  |  |
[ ! ] For other alterations, see "Alterations" below.
■How to specify Aluminum Extrusions Load Capacity Guideline (deflection amount)
[ ! ] The load capacity guideline is a load which the extrusion deflection amount is within 1 mm per 1,000 mm of length.
Deflection exceeding this will not cause damage, but should be considered the maximum practical deflection. (The allowable deflection amount is proportional to the length. Example: 500 mm => 0.5 mm, 2000 mm => 2 mm)
[ ! ] The load capacity guideline is a load which the extrusion deflection amount is within 1 mm per 1,000 mm of length.
Deflection exceeding this will not cause damage, but should be considered the maximum practical deflection. (The allowable deflection amount is proportional to the length. Example: 500 mm => 0.5 mm, 2000 mm => 2 mm)
Alterations (Available only for configurable length, not available for fixed length)
[ ! ] MISUMI configurable length aluminum extrusion product can be utilized for structure building with highly enhanced design flexibility when the following various alteration options are applied.
Some alterations are not applicable depending on types and sizes.
Some alterations are not applicable depending on types and sizes.
| Type | Alterations | Alteration Codes | Application Example | Contents |
|---|---|---|---|---|
| > End Tapping | End Tapping (Center Hole) | LTP / RTP / TPW LHP / RHP / HPW |  | Adds tapped holes on extrusion ends. M8, Depth 24: LTP/RTP/TPW M5, Depth 10 (Heli-coil insertion completed): LHP/RHP/HPW Blind Joints which require this alteration (Screw Joint / Simple Joint) |
| End Tapping (4 Side Holes) | LSP / RSP / SPW |  | Adds tapped holes (M5, Depth 10) on extrusion end face and corner ends. | |
| > Cutting Method Change | High Precision Cut | SC |  | Applies High Precision Cut with an overall length L tolerance of L ±0.2 (Standard = L ±0.5). *Only applicable to L ≤ 1,500 |
| 45-Degree Cut | L□T45 / R□T45 |  | Cuts with 45-degree angle. In case of 45-Degree Cut, it is impossible to specify other alterations in the same direction. Example: HFS6-3030-500-LTP-LAT45 => Not acceptable (Alterations in the same direction (left)) HFS6-3030-500-LTP-RAT45 => Acceptable (Separate alterations on left and right) | |
| > Wrench Hole Drilling | Wrench Hole in Fixed Position | LWP / RWP |  | Wrench hole(s) for Blind Joints are drilled. The hole location will be aligned with the mating extrusion’s end tapping location. Blind Joints which require this alterationp (Screw Joint / Single Joint / Tapping Joint) |
| Hole Position Change for Extrusion End Cap Thickness | FL / FR |  | Offsets the wrench hole for the fixed position of Extrusion End Cap thickness (3 mm). The extrusion end cap will be flat with the adjacent extrusion surface. | |
| Wrench Hole in Specified Position | AH / BH / AV / BV |  | Adds a wrench hole in a desired position from the left end face. Use for blind joint in beam sections, etc. | |
| > Counterboring | Counterbored Holes in Specified Position | Z6 / XA100 |  | Adds a counterbored hole in a desired position from the left end face. Can be used for connecting extrusions or installing tables, etc. · Up to 5 holes can be specified in one direction. · Counterbored holes are added on every slot for multiple slotted extrusions. |
| > Blind Joint Dedicated Holes | D Hole | LDH / RDH |  | Adds required holes for Single Joint connections. (Single Joints) |
| S Hole | LSH |  | Adds required holes for Pre-Assembly Insertion Double Joint connections. (Pre-Assembly Insertion Double Joints) | |
| M Hole | LMH |  | Adds required holes for Post-Assembly Insertion Double Joints, Center Joint connections. (Post-Assembly Insertion Double Joint / Center Joint) | |
| L Hole | JLP |  | Adds required holes for Parallel Joint connections. (Parallel Joints) | |
| > Other Machining | GNFS Series GFS Series End Tapping | LTS / RTS / TSW |  | Adds tapped holes on extrusion ends. This process is required for using extrusion end cap of the plate for high rigidity type. (Plates for High Rigidity Type) |
| HFSR End Tapping | LTS / RTS / TSW |  | Necessary alteration to use Ends Protection Plates for HFSR series. | |
| End Face C Chamfering | CW |  | Adds C Chamfering on extrusion end faces. | |
| Labeling | ZZZ |  | Adds a sticker with catalog No. etc. on the aluminum extrusions. Although number of characters are limited, customer's own serial number or unit number can be labeled. |
List of Applicable Extrusion End Cap
Extrusion Part Number | Applicable Extrusion End Cap | |||||
Product Type | Color | Thickness | Part Number | Qty. Used | ||
| HFS6-3030 HFSB6-3030 CAF6-3030 HFSY6-3030 HFSL6-3030 HFSLB6-3030 EFS6-3030 EFSB6-3030 NEFS6-3030 NEFSB6-3030 NFSL6-3030 Same for Fixed Length Extrusions (Part number starting with K) |  | End Cap Mounting | Black | 3 | HFC6-3030-B | 1 |
Light Gray | 3 | HFC6-3030-S | 1 | |||
 | End Cap Mounting (Long Leg Type) | Black | 3 | HFCL6-3030-B | 1 | |
Light Gray | 3 | HFCL6-3030-S | 1 | |||
 | Bolt Mounting | Black | 3 | HFCB6-3030-B | 1 | |
Light Gray | 3 | HFCB6-3030-S | 1 | |||
Yellow | 3 | HFCB6-3030-Y | 1 | |||
| GNFS6-3030 GFS6-3030 Same for Fixed Length Extrusions (Part number starting with K) |  | End Cap Mounting (For High Rigidity) | Black | 3 | GFC6-3030-B | 1 |
Light Gray | 3 | GFC6-3030-S | 1 | |||
 | Bolt Mounting (Plate for High Rigidity Type) Specific alterations are required for installation. | Silver | 2 | HFCD6-3030 | 1 | |
