Ball Roller Pressed Product, Pressed Bolt Stop Type
Caution
Product Description
·It includes a waste discharge hole that allows any debris inside to be discharged.
| [M] Material | [S] Surface Treatment | |||
| (1) Main Ball | (2) Cover | (3) Main Body | Sub Ball | (2) Cover |
| SWCH10R | SPCC | SUS304 | SWCH10R | Trivalent Bright Chromate Plating |
Specification Table
| Part Number |
| BCUH50 |
| Part Number | D | D1 | d | P | B | h1 | h2 | F1 | F2 | Mounting Orientation | Waste Discharge Hole | Load Capacity N(kgf) | |
| Type | No. | ||||||||||||
| BCUH | 50 | 56 | 33 | 25.40 | 45.5 | 36.5 | 14.6 | 15.4 | 7 | 4 | Upward-Facing | Bottom | 490 (50) |
Specifications / Overview
Do you have the following issues?
- Issue 1
- Rotation is slowed when waste gets inside the ball roller
- Try our solutions
- Solution 1:
- The waste discharge feature increases the product's service life and reduces maintenance time compared to conventional products
Waste Discharge Hole Structure
An innovative solution for discharging waste has been achieved
With head dust ejection slit

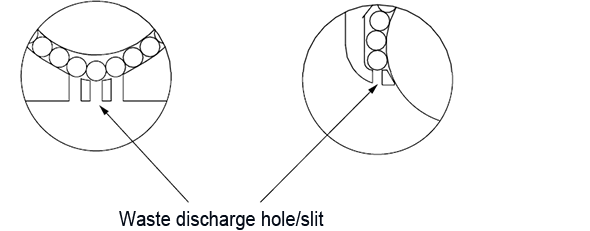

[Enlarged view of waste discharge hole/slit]
Ball rollers (milled ball rollers) with waste discharge holes do not bear load on the small ball receiving surface directly below the large ball.
This structure allows for a large number of waste discharge holes at the lowest point of the body or a waste discharge slit at the highest point of the body.
Holes have been machined in the smaller ball contact area—something that was considered difficult with conventional structures—thus allowing debris and water that have gotten inside the structure to be discharged to keep rotation continuing smoothly.
