Locating Pins - Plastic, Large Head - Press Fit

Locating Pins - Plastic, Large Head - Press Fit
You can add up to 6 items per a category to the compare list.

Brand :

MISUMI

MISUMI

Part Number :
186 Part Numbers Available

DFPZA1-P[1.5-2.5/0.01]-L[2-3/1]-B[2-5/0.1]

DFPZA2-P[2.5-4/0.01]-L[2-6/1]-B[2-10/0.1]

DFPZA3-P[3.5-6/0.01]-L[3-6/1]-B[2-10/0.1]

DFPZA4-P[4.5-7/0.01]-L[4-8/1]-B[2-10/0.1]

DFPZA5-P[5.5-8/0.01]-L[5-10/1]-B[2-10/0.1]

DFPZA6-P[6.5-10/0.01]-L[6-12/1]-B[2-12/0.1]

DFPZA8-P[9-13/0.01]-L[8-16/1]-B[2-15/0.1]

DFPZA10-P[11-15/0.01]-L[10-20/1]-B[3-20/0.1]

DFPZFA1-P[1.5-2.5/0.01]-L[2-3/1]-B[2-5/0.1]

DFPZFA2-P[2.5-4/0.01]-L[2-6/1]-B[2-10/0.1]

DFPZFA3-P[3.5-6/0.01]-L[3-6/1]-B[2-10/0.1]

DFPZFA4-P[4.5-7/0.01]-L[4-8/1]-B[2-10/0.1]

DFPZFA5-P[5.5-8/0.01]-L[5-10/1]-B[2-10/0.1]

DFPZFA6-P[6.5-10/0.01]-L[6-12/1]-B[2-12/0.1]

DFPZFA8-P[9-13/0.01]-L[8-16/1]-B[3-15/0.1]

DFPZFA10-P[11-15/0.01]-L[10-20/1]-B[4-15/0.1]

DFPZQ1-P[1.5-2.5/0.01]-L[2-3/1]-B[2-5/0.1]

DFPZQ2-P[2.5-4/0.01]-L[2-6/1]-B[2-10/0.1]

DFPZQ3-P[3.5-6/0.01]-L[3-6/1]-B[2-10/0.1]

DFPZQ4-P[4.5-7/0.01]-L[4-8/1]-B[2-10/0.1]

DFPZA1-P[1.5-2.5/0.01]-L[2-3/1]-B[2-5/0.1]
DFPZA1-P[1.5-2.5/0.01]-L[2-3/1]-B[2-5/0.1]

Copy Part Number URL to Clipboard

The part number URL has been copied into your clipboard.

Close

loading
  • Price :
    ---
  • Qty :
  • Days to Ship :
    ---
  • Total Price :
    ---

Select part number to Order Now/ Add to Cart

PDFP.1-1614-2014

CAD Download
My Components
My Components
Similar ProductsSimilar Products
Product DetailProduct Detail

Product Description

- Locating Pins - Plastic, Large Head - Press Fit from MISUMI.
- Plastic Locating Pins which prevent workpiece damage.
- Insertion guide tip type can be selected 3 types, Tapered, Flat and Spherical.
- The outer diameter tolerance is the result of measurement at room temperature.
- The material of locating pin can be selected 4 types, Polyacetal (Black), MC Nylon (Blue), Conductive MC Nylon CDR2 (Black), or PEEK (Natural Ivory).
- The mounting method is press fit, with m6 tolerance.

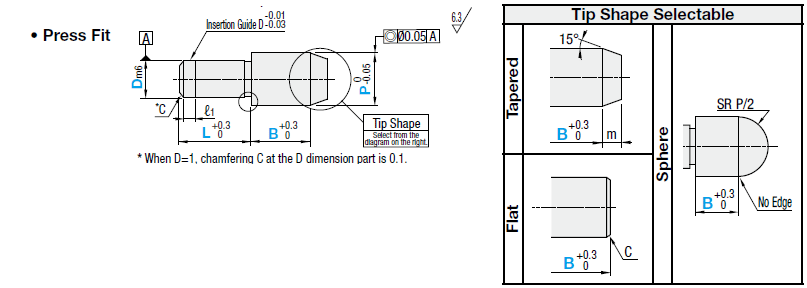

Locating Pins - Plastic, Large Head, Tip Shape Selectable - Press Fit:Related Image
[ ! ]The outer diameter tolerance is the result of measurement at room temperature.

TypeFixed PartHead Shape[ M ]MaterialOperating Ambient Temperature
P ConfigurableP, L, B Configurable
JPFJPZ (Standard)A (Tapered)
FA (Flat)
Q (Sphere)		Polyacetal (Black)-45~95°C
MJPMFPMC Nylon (Blue)-40~120°C
DJPDFPConductive MC Nylon CDR2 (Black)-40~120°C
JKPFKPPEEK (Natural Ivory)-50~250°C
[ ! ]Some combinations are not available. Refer to the price list to select the available combination.

[ ! ]Characteristics of Polyacetal, MC Nylon, Conductive MC Nylon, PEEK
>> P.2-953, 954
(For Polyacetal and MC Nylon, refer to Standard Grade.)

Specifications

Part Number-P

Type Fixed Part Head Shape D
JP Z A 8-10.00
■P Configurable
Part NumberP
0.01mm Increment		LBCmℓ1
TypeFixed PartHead ShapeD D
Tolerance m6
JP

MJP

DJP

JKP		Z (Standard)A (Tapered)
FA (Flat)
Q (Sphere)		1+0.008
+0.002		1.50~2.50330.30.50
2+0.008
+0.002		2.50~4.00430.510
3+0.008
+0.002		3.50~6.00550.521
4+0.012
+0.004		4.50~7.0056131
5+0.012
+0.004		5.50~8.00106131
6+0.012
+0.004		 6.50~10.00108131
8+0.015
+0.006		 9.00~13.001581.541
10+0.015
+0.006		11.00~15.001510241
■P, L, B Configurable
Part NumberP
0.01mm Increment		L
1mm Increment		B
0.1mm Increment		Cmℓ1
TypeFixed PartHead ShapeD D
Tolerance m6
FJP

MFP

DFP

FKP		Z (Standard)A (Tapered)
FA (Flat)
Q (Sphere)		1+0.008
+0.002		1.50~2.502, 32.0~5.00.30.50
2+0.008
+0.002		2.50~4.002~62.0~10.00.510
3+0.008
+0.002		3.50~6.003~62.0~10.00.521
4+0.012
+0.004		4.50~7.004~82.0~10.0131
5+0.012
+0.004		5.50~8.00 5~102.0~10.0131
6+0.012
+0.004		 6.50~10.00 6~122.0~12.0131
8+0.015
+0.006		 9.00~13.00 8~162.0 (3.0)~15.01.541
10+0.015
+0.006		11.00~15.0010~203.0 (4.0)~20.0241
[ ! ]B dimension of Flat Type is in ( ).
