Oldham Couplings - Clamping / Set Screw (CPOC40-12-16)

Name: Oldham Couplings - Clamping / Set Screw
Brand: MISUMI
Availability: PreOrder

COUPLING

Click this image to zoom it.

Move the mouse over or click the image to zoom

Compare This Product

Brand :

MISUMI

Qty :
Days to Ship :

---
Total Price :

---

Select part number to Order Now/ Add to Cart

CAD Download

(i)Caution

Please check the content on our website as the PDF does not contain the most up-to-date information.

Product Description

Oldham type standard coupling.
[Features]
· Oldham type flexible coupling.
· Large eccentricity and declination are allowed due to slipping of hub and spacer.
· Have the spacer protruded to reduce load applied to the shaft, by naturally tolerating large angular/lateral misalignment.
· It has electrical insulation.
[Applications]
· For parts feeders/transportation equipment, etc.

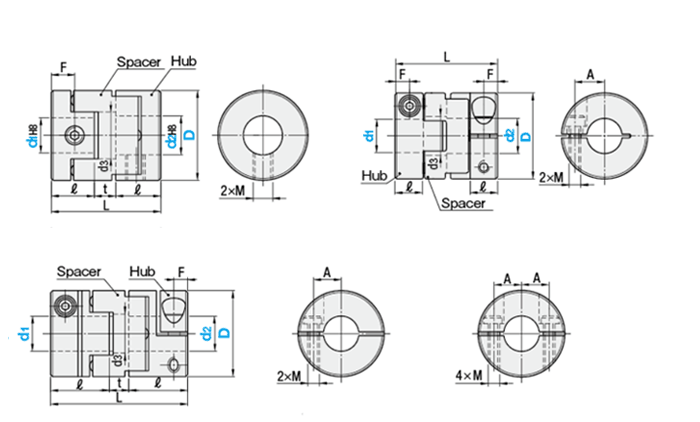

Couplings/Oldham/Clamping/Set Screw:Related Image

TYPE	Material			Surface Treatment
	Hub	Spacer	Hex Socket Head Cap Screw Set Screw	Hub	Hex Socket Head Cap Screw Set Screw
CPOC	Aluminum Alloy	Polyacetal	SCM435	Clear Anodize	Black Oxide
CPO

Parts	Material	Surface Treatment
Hub	Aluminum Alloy	Clear Anodize
Spacer	Polyacetal	-
Set Screw	SCM435	Black Oxide

Specifications

Part Number	-	Shaft Bore Dia. d1	-	Shaft Bore Dia. d2
CPO25	-	8	-	10
CPOC20	-	6	-	8
CPOCG16	-	3	-	5

Part Number		d₁, d₂ Selection (d₁≤d₂)														d₃	L	l	t	F	A	Set Screw / Clamp Screw		Unit Price
Type	D	d₁, d₂ Selection (d₁≤d₂)														d₃	L	l	t	F	A	M	Tightening Torque (N • m)	Unit Price
CPO	16	3	4	5	6	6.35										7	18	7	4	3.5	-	M3	0.7
	20		4	5	6	6.35		8								9	23	9	5	4.5		M4	1.7
	25			5	6	6.35		8	9.53	10						11	28	11	6	5.5		M5	4
	32							8		10		12	14			14.5	33	13	7	6.5		M6	7
	*40									10		12	14	15	16	17	32	14	4	7		M6	7
CPOC	16			5	6											7	29	12.5	4	3	5	M2.5	1
	20				6	6.35		8								9	33	14	5	3	6.5	M2.5	1
	25					6.35		8		10						11	39	16.5	6	3.8	9	M3	1.5
	32							8		10	11	12	14			14.5	45	19	7	4.5	11	M4	2.5
	*40											12	14	15	16	17	50	23	4	7	13	M5	4
CPOCG	12	3	4	5												6	14.9	5	-	2.5	4	M2	0.5
	16		4	5	6											8	21	7		3.5	5	M2.5	1
	20			5	6	6.35	7	8								10	22.1	7		3.5	6.5	M3	1
	25					6.35	7	8		10						14	27.2	8		4	9	M4	1.5
	32							8		10	11	12	14			18	33.3	10		5	11	M4	2.5

* The spacer of D40 is black.

Part Number		Allowable Torque (N • m)	Angular Misalignment (°)	Lateral Misalignment (mm)	Static Torsional Spring Constant (N • m/rad)	Max. Rotational Speed (r/min)	Moment of Inertia (kg • m²)	Mass (g)
Type	D	Allowable Torque (N • m)	Angular Misalignment (°)	Lateral Misalignment (mm)	Static Torsional Spring Constant (N • m/rad)	Max. Rotational Speed (r/min)	Moment of Inertia (kg • m²)	Mass (g)
CPO	16	0.7	3	1.0	31	39000	3.2x10^-7	7
	20	1.2		1.5	60	31000	1.0x10^-6	14
	25	2.0		2.0	140	25000	3.0x10^-6	27
	32	4.5		2.5	280	19000	9.5x10^-6	50
	40	9.0		3.0	540	15000	2.3x10^-5	80
CPOC	16	0.7	3	1.0	31	39000	5.8x10^-7	12
	20	1.2		1.5	60	31000	1.5x10^-6	19
	25	2.0		2.0	140	25000	4.4x10^-6	36
	32	4.5		2.5	280	19000	1.4x10^-6	69
	40	9.0		3.0	540	15000	4.1x10^-5	130
CPOCG	12	0.2	2	0.6	9	52000	7.1x10^-8	3
	16	0.4		1	30	39000	3x10^-7	8
	20	0.7		1.3	47	31000	7.4x10^-7	13
	25	1.2		1.5	85	25000	2.2x10^-6	24
	32	2.8		2	190	19000	7.3x10^-6	48

The allowable torque varies depending on temperature. See P.1138.

Alterations

Part Number

Incomplete part number.
Please use left hand selections to complete a part number.

: 30; 60; 90

Part Number
CPOC40-12-16

Part Number	Price	Name	Minimum Order Qty.	Volume Discount	Days to Ship	RoHS	Shaft Bore Dia. 1 d1 (or d) (Ø)	Shaft Bore Dia. 2 d2 (or d) (Ø)	O.D. (Ø)	Overall Length (mm)	Application	Allowable Torque Range (N•m)	Features	Allowable Torque (N•m)	Allowable Angular Misalignment (deg)	Allowable Lateral Misalignment (mm)	Allowable Lateral Misalignment Range (mm)	Max. Rotational Speed (r/min)	Moment of Inertia (kg･m²)	LDC (mm)	RDC (mm)
	-	COUPLING	1 Piece(s)		5 Day(s)	10	12	16	40	50	-	5.01~10.00	-	9	3	3	1.1~3.0	15000	4.1 x 10^-5	-	-

Product TOP

Basic Information

Series Name	Oldham	Allowable Misalignment	Angular Misalignment / Eccentricity	Max. Rotational Speed Range(r/min)	10001~78000
Body Material	Aluminum	Product Category	Coupling Main Body	Buffer Material	Polyacetal
Operating Temperature(°C)	-20::80
